51102 Steel deep grove ball bearings for motorcycle engine and ART parts
Price:
0.1-10 usd /pc
MOQ:
5 pcs
Delivery Time:
After receive the deposit
Brand:
KOYO, NSK, THK, OEM OR TRIETERN
Product Description
51102 Steel deep grove ball bearings for motorcycle engine and ART parts
Application
- Road Planes
- Steel rolling / heavy industry / Transmissions
- Agricultural, pumps, mining
- General heavy engineering applications
- Marine, shipping and paper
Types of Thrust ball bearing
- Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
- Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
-
Model 51102 Dimension 15*28*9mm Weight 0.024 kg Greese/Oil As you requirement, such as SRL ,PS2, Alvania R12 and so on. Hardness HRC60~HRC63 Bearing type GCR15 Material (Chrome Steel) deep groove ball bearings Quality level Reach the same level as Japanes and European bearings Feature low voice,high speed,long life Application Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills. Delivery time 1,It's mainly depend on your order;
2, Usually about 7-15 days
Payment terms T/T, L/C,Western Union,etc Package 1,barreled package+outer carton+pallets
2,single box+outer carton+pallets
3,tube package+middle box+outer carton+pallets
4,According to your's requirementDetails We have complete process for the production and quality assurance to make sure our products can meet your requirement.
1.Assembly
2.Windage test
3.Cleaning
4.Rotary test
5.Greasing and gland
6.Noise inspection
7.Appearance inspection
8.Rust prevention
9.Product packaging
Axial contact ball bearing Type Numbers:
| Bearing Type | Bearing Size d*D*B(mm) | Bearing N.W.(kg) | Bearing Type | Bearing Size d*D*B(mm) | Bearing N.W.(kg) | ||
| New Code | Original Code | New Code | Original Code | ||||
| 51100 | 8100 | 10*25*9 | 0.019 | 51200 | 8200 | 10*26*11 | 0.0293 |
| 51101 | 8101 | 12*26*9 | 0.021 | 51201 | 8201 | 12*28*11 | 0.0324 |
| 51102 | 8102 | 15*28*9 | 0.024 | 51202 | 8202 | 15*32*12 | 0.0444 |
| 51103 | 8103 | 17*30*9 | 0.025 | 51203 | 8203 | 17*35*12 | 0.0506 |
| 51104 | 8104 | 20*35*10 | 0.038 | 51204 | 8204 | 20*40*14 | 0.0773 |
| 51105 | 8105 | 25*42*11 | 0.056 | 51205 | 8205 | 25*47*15 | 0.109 |
| 51106 | 8106 | 30*47*11 | 0.06 | 51206 | 8206 | 30*52*16 | 0.138 |
| 51107 | 8107 | 35*52*12 | 0.066 | 51207 | 8207 | 35*62*18 | 0.22 |
| 51108 | 8108 | 40*60*13 | 0.12 | 51208 | 8208 | 40*68*19 | 0.27 |
| 51109 | 8109 | 45*65*14 | 0.15 | 51209 | 8209 | 45*73*20 | 0.32 |
| 51110 | 8110 | 50*70*14 | 0.16 | 51210 | 8210 | 50*78*22 | 0.39 |
| 51111 | 8111 | 55*78*16 | 0.24 | 51211 | 8211 | 55*90*25 | 0.619 |
| 51112 | 8112 | 60*85*17 | 0.29 | 51212 | 8212 | 60*95*26 | 0.69 |
| 51113 | 8113 | 60*90*17 | 0.324 | 51213 | 8213 | 65*100*27 | 0.75 |
| 51114 | 8114 | 70*95*17 | 0.36 | 51214 | 8214 | 70*105*27 | 0.79 |
| 51115 | 8115 | 75*100*19 | 0.392 | 51215 | 8215 | 75*110*27 | 0.85 |
| 51116 | 8116 | 85*105*19 | 0.404 | 51216 | 8216 | 80*115*28 | 0.925 |
| 51117 | 8117 | 85*105*19 | 0.46 | 51217 | 8217 | 85*125*31 | 1.3 |
| 51118 | 8118 | 90*120*22 | 0.64 | 51218 | 8218 | 90*135*35 | 1.77 |
| 51120 | 8120 | 100*130*25 | 1 | 51220 | 8220 | 100*150*38 | 2.4 |
| 51122 | 8122 | 110*145*25 | 1.08 | 51222 | 8222 | 110*160*38 | 2.6 |
| 51124 | 8124 | 120*155*25 | 1.16 | 51224 | 8224 | 120*170*39 | 2.9 |
| 51126 | 8126 | 130*170*30 | 1.8 | 51226 | 8226 | 130*190*45 | 3.91 |
| 51128 | 8128 | 140*180*31 | 2.1 | 51228 | 8228 | 140*200*46 | 4.6 |
| 51130 | 8130 | 150*190*31 | 2.2 | 51230 | 8230 | 150*215*50 | 5.8 |
| 51132 | 8132 | 160*200*31 | 2.3 | 51232 | 8232 | 160*225*51 | 6.7 |
| 51134 | 8134 | 170*215*34 | 3.3 | 51234 | 8234 | 170*240*55 | 8.3 |
| 51136 | 8136 | 180*225*34 | 3.5 | 51236 | 8236 | 180*250*56 | 8.9 |
| 51138 | 8138 | 190*240*37 | 4.1 | 51238 | 8238 | 190*270*62 | 11.9 |
| 51140 | 8140 | 200*250*37 | 4.2 | 51240 | 8240 | 200*280*62 | 12.4 |
Packaging:
1. Industrial packaging: plastic bag/plastic tube + kraft paper + carton + plywood pallets
2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets
3. As the clients' requirement
Shipping:
DHL, FEDEX, TNT,ARAMEX
By SEA
By AIR
Our services:
1.Your inquiry to our product & price will be replied within 24hours.
2.Well-trained & experienced staff are to answer all your inquiries in English of course.
3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if you got question.

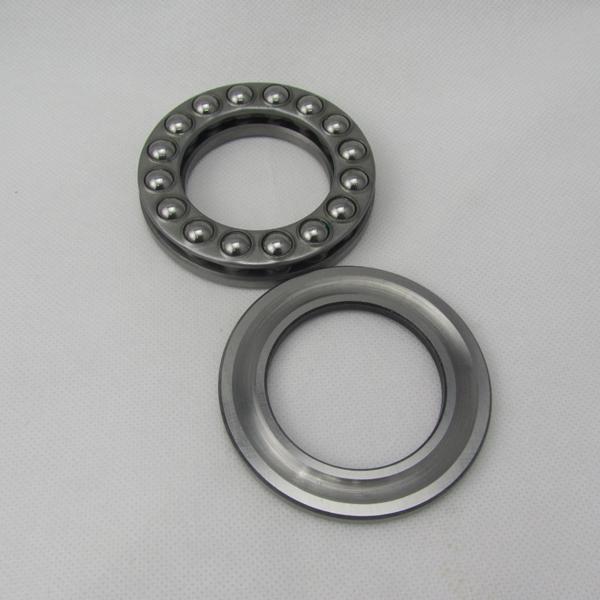

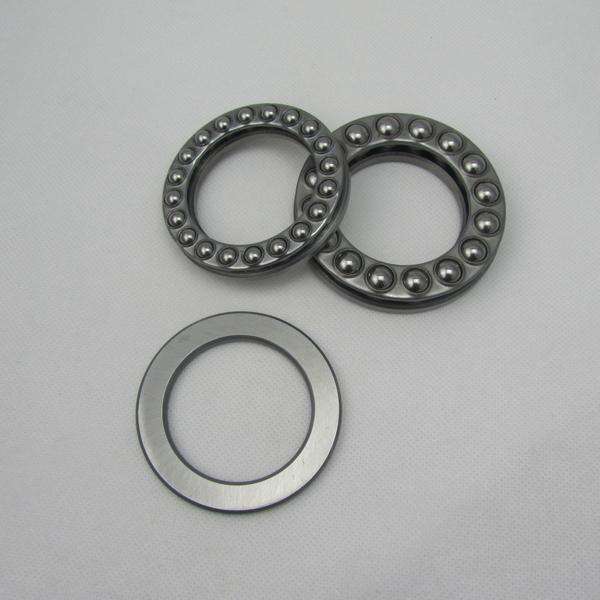

Photos of Low Prices Ball Thrust Bearing 51102![]()
![]()
