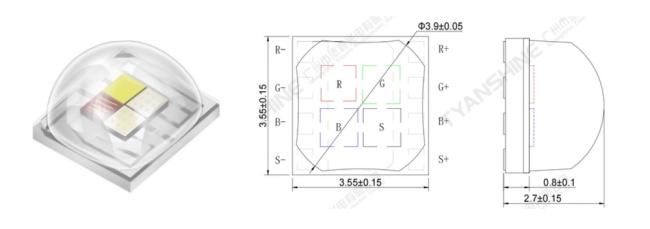

Ceramic SMD3535 LED 8Watt RGBW LM-80 LEDs 4in1 multi-color RGBL LED Chip
Ceramic SMD3535 LED 8Watt RGBW LM-80 LEDs 4in1 multi-color RGBL LED Chip
Key Features of the Ceramic SMD3535 RGBW Package LEDs:
1, Eutectic-bonding packaging technique with flip-chips on a ceramic base, stronger cohesion, less coefficient of expansion, more stable,tighter air-proof to enable tough outdoor application circumstances;
2, 30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;
3, Anti-UV silicon domed lens, anti-aging and better light direction;
4, LM-80 certified, Long lifespan over 50,000 hrs
Specifiation:
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen(lm) IF=500mA |
CRI |
|
RGBW
(8W) |
R | 800 | 2.0-2.5 | 620-625 | 120 | 45-50 | / |
| G | 800 | 2.9-3.4 | 522-532 | 80-85 | / | ||
| B | 800 | 2.9-3.4 | 450-460 | 20-35 | / | ||
| 465-475 | 35-60 | / | |||||
| W | 800 | 2.9-3.4 | 6500K±500K | 140-195 | / |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen(lm) IF=500mA |
CRI |
|
RGBW
(8W) |
R | 800 | 2.0-2.5 | 620-625 | 120 | 45-50 | / |
| G | 800 | 2.9-3.4 | 522-532 | 80-85 | / | ||
| B | 800 | 2.9-3.4 | 450-460 | 20-35 | / | ||
| 465-475 | 35-60 | / | |||||
| W | 800 | 2.9-3.4 | 4000K±300K | 120-185 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen(lm) IF=500mA |
CRI |
|
RGBW
(8W) |
R | 800 | 2.0-2.5 | 620-625 | 120 | 45-50 | / |
| G | 800 | 2.9-3.4 | 522-532 | 80-85 | / | ||
| B | 800 | 2.9-3.4 | 450-460 | 20-35 | / | ||
| 465-475 | 35-60 | / | |||||
| W | 800 | 2.9-3.4 | 3000K±150K | 105-135 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen(lm) IF=500mA |
CRI |
|
RGBL
(8W) |
R | 800 | 2.0-2.5 | 620-625 | 120 | 45-50 | / |
| G | 800 | 2.9-3.4 | 522-532 | 80-85 | / | ||
| B | 800 | 2.9-3.4 | 450-460 | 20-35 | / | ||
| 465-475 | 35-60 | / | |||||
| L | 800 | 2.9-3.6 |
4030-4280K (565-568nm) |
130-175 | / |
Appplications:
1, Outdoor Landscape illumination & Architectural lighting:
Luminaries such as Liner light, wall-washer, flood light, under-ground and under water light, etc.
2, Entertainment lighting/Stage lighting
Matrix panel lights, Moving Heads panels, Par cans lights, Pixel Tubes ...
Additional Services:
PCB design & making, LEDs soldering.
