Mechanical H Beam Straightening Machine , H Beam Welding Line for Correct

Mechanical H Beam Straightening Machine , H Beam Welding Line for Correct

1. Major technical parameters

● Width of the wing board: 200-800 mm
● Thickness of the wing board: 6-40 mm
● Min height of the former: 200 mm
● Power rate of the major motor: 24.2kw
● Correcting speed: 13300 mm/min

2. Provide goods and compose parts

● Main frame of correcting machine: base, left-and-right frame, motor, deceleration machine, press roller, main roller, vice roller.
● Conveyor: base, input and output roller and so on.
● Electric control: electric control box.
● Spare parts: switch*2, wrench*1.

3. Performance

        HYJ-40 H beam straightening machine is specially designed for the correction of the wing board. The main machine uses the 22KW electric motor and pin gear reductor drive characterized by high efficient and high speed. All the correcting rollers are made of high-quality alloy steel. Besides, the machine is put under advanced hot treatment to prevent crackles. All the parts are reinforced to stabilize the correction and realize the long service life.

4. Technical files

● Using manual of the machine (Include electrical schematic)
● Shipping list
● The certification of the machine
● The basis of drawing of the machine

	Main features:     ● All the parts that equipped in the machine are reinforced so as to realize the long service life   ● All the correcting rollers in the machine are made of high-quality alloy steel   ● The machine is in simple structure, high efficiency, and convenient operation and so on

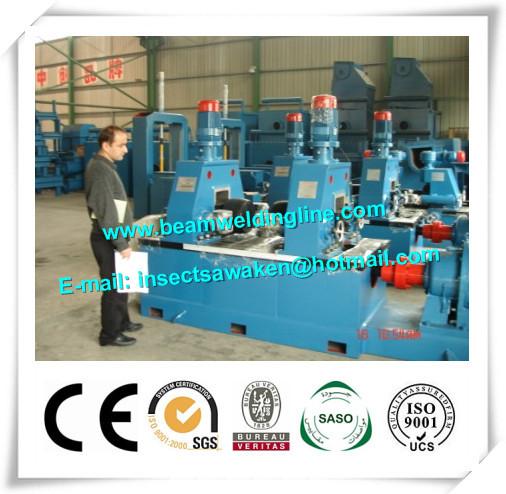

	Customer inspect the machine before the shipment     If you want to see the machine in working please search Luk Mankai on Youtube
