Industrial Automatic Shot Blasting Machine For Steel Struction Component
Industrial Automatic Shot Blasting Machine For Steel Struction Component
1. Main specification
|
Model |
HP4035-22 |
|
|
Work-piece size |
Section (Width*Height) |
4000*3500mm |
|
Length |
15000mm |
|
|
Working speed |
0.6-3m/min |
|
|
Impeller head |
Type |
JH0338Z15 |
|
Amount |
22 |
|
|
Shot blasting volume |
22*250kg/min |
|
|
Power |
22*15kw |
|
|
Hoist |
Hoist volume |
300t/h |
|
Power |
15kw |
|
|
Vertical screw conveyor |
Delivery volume |
300t/h |
|
Power |
2*4kw |
|
|
Separator |
Separator volume |
300t/h |
|
Up/ down screw |
Power |
11kw |
|
Dust removal system |
Air volume |
23000m3/h |
|
Power |
2*22kw |
|
|
Input/ output conveyor |
Loading |
3500kg/m |
|
Power |
2*7.5kw |
|
|
Input/ output speed |
0.4-4m/min |
|
|
Conveyor loading |
3500kg/m (Φ219*16mm) |
|
|
Conveyor length |
2*11000mm |
|
|
Steel shot add volume (first time) |
13000kg |
|
|
Total power(excluding air compress) |
About 419kw |
|

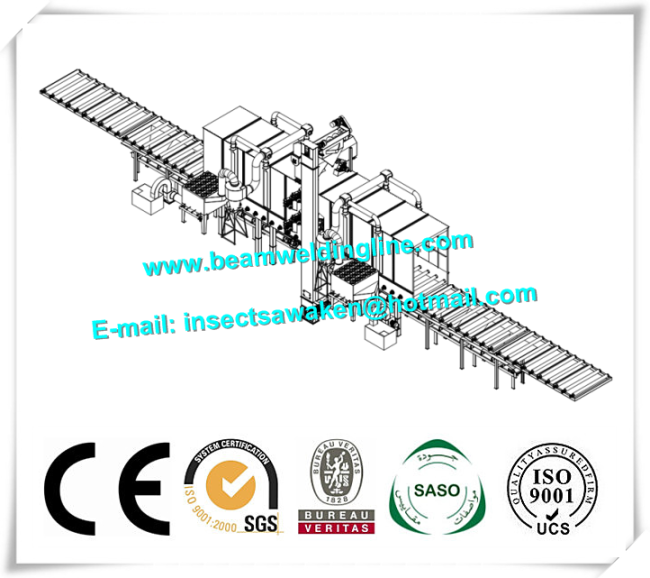

2. Shot blasting machine constituent part
● Work-piece feeding system

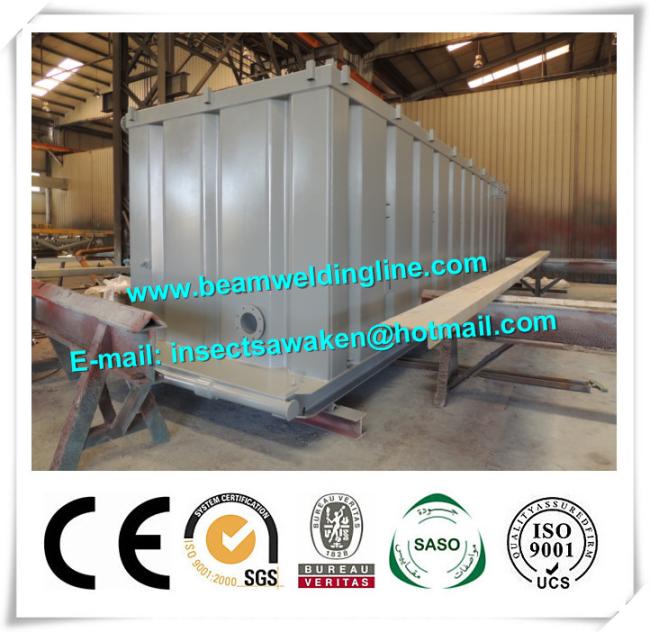

● Shot blasting clean room
● Steel shot recycling system
● Dust removal system
● Electric control system
 |
 |

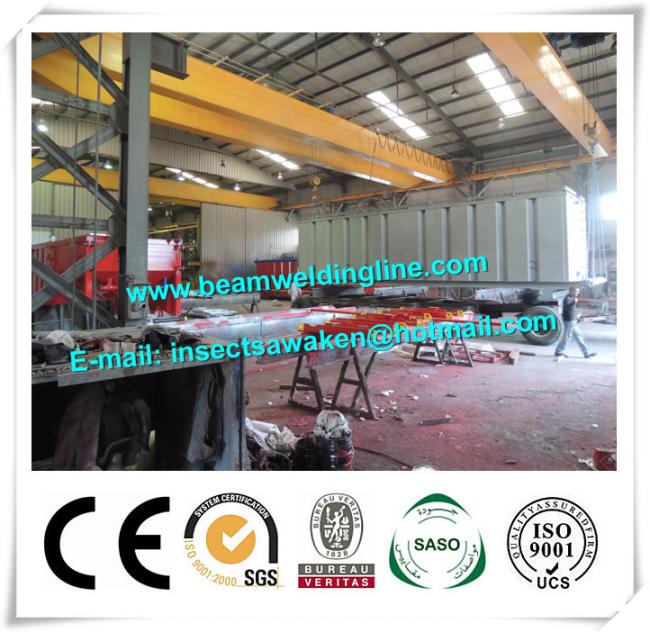

Which is export to Greece to blasting and cleaning steel structure parts
