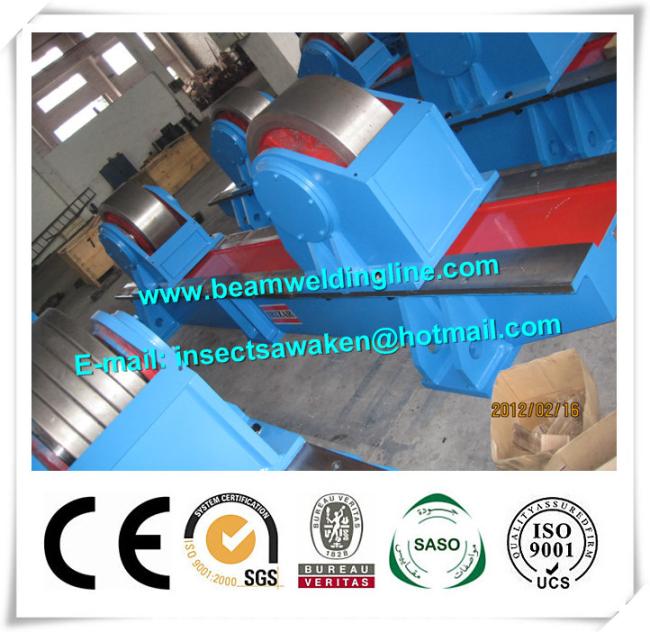

1. Machine introduction
The CWR type conventional welding rotators have advantages of the same kinds of products in domestic and international. We design and make them according to the requirments of the pressure vessel factory. These products are applied in the handling and automatic welding of the metal circle containers, they have many advantages such as advanced technology, easy operation.
The rotators have two kinds, adjustable and conventional, it can used in all kind of the diameter and frequency conversion setting, low sound, work placidity.
2. Technical parameters
Type | CWR5 | CWR10 | CWR20 | CWR30 | CWR40 | CWR50 | CWR60 | CWR80 | CWR100 | ||
Load | 5 | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | ||
Rollerl | Metal roller | Diameter (mm) | 240 | 290 | 340 | 340 | 390 | 390 | 440 | 490 | 490 |
Width (mm) | 20 | 25 | 30 | 30 | 40 | 40 | 50 | 60 | 80 | ||
Rubber roller | Diameter (mm) | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 500 | 500 | |
Width (mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | ||
Tube body diameter | Minimum (mm) | 250 | 320 | 500 | 530 | 600 | 750 | 750 | 850 | 1000 | |
Maximum (mm) | 2300 | 2800 | 3500 | 3700 | 4200 | 4500 | 4800 | 5000 | 5000 | ||
Wheel velocity (m/h) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | ||
Power of motor (KW) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 4 | 4 | 5.5 | ||
Way of setting | Electric magnetism of frequency conversion setting | ||||||||||

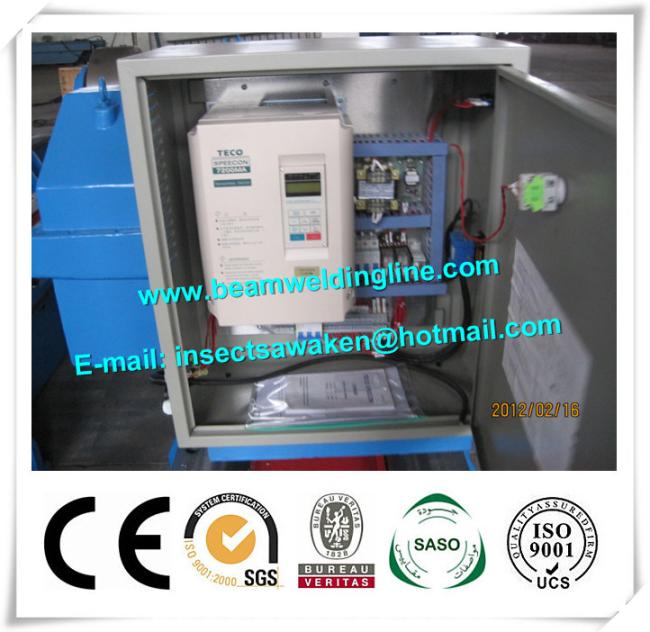

welding rotator is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber. It can be aligned according to the size of the shell, it is controlled with AC frequency converter, and the linear velocity is displayed by the digital. |  |
 |
● CE & ISO approved
|
