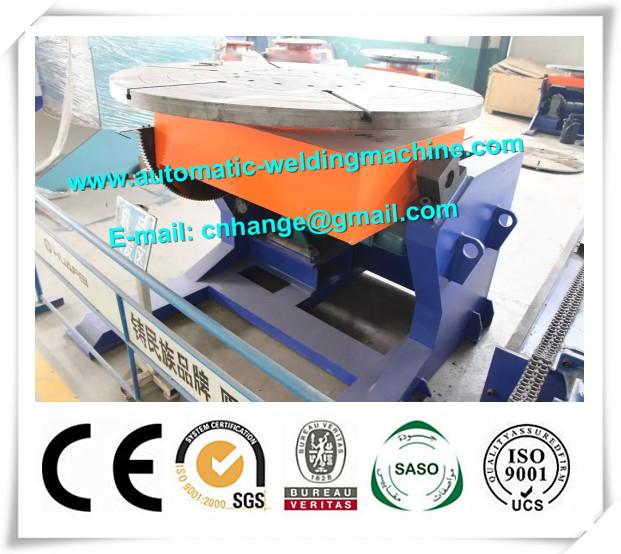

1. General Description
-The worktable could be rotated ( in 360 degree)or tilted (in 90-120 degree)allowing work piece to be welded at the best position.
-Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.
-Electric control system composed of electric cabinet and manual control panel making it easy to operate.
-Equipped with slewing bearing which helps increase the loading capacity and makes the rotation smooth.
- Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.
-Several concentric grooves are processed onto the surface of the worktable to help position the work piece at the center.
-The whole rack will not deform even long time use because of annealing treatment
2. Technical Parameters
|
Model |
Loading Capacity (kg) |
Rotation Speed (rmp) |
Tilting Speed (rmp) |
Tilting Angle |
Table Dia. (mm) |
Rotation Power (kw) |
Tilting Power (kw) |
|
ZHB-01 |
100 |
0.4-4 |
2 |
0-90 |
400 |
0.18 |
0.18 |
|
ZHB-03 |
300 |
0.1-1 |
1 |
0-90 |
600 |
0.37 |
0.37 |
|
ZHB-06 |
600 |
0.09-0.9 |
0.42 |
0-90 |
1000 |
0.75 |
0.75 |
|
ZHB-12 |
1200 |
0.05-0.5 |
0.4 |
0-120 |
1200 |
1.1 |
1.1 |
|
ZHB-30 |
3000 |
0.05-0.5 |
0.23 |
0-120 |
1400 |
1.1 |
2.2 |
|
ZHB-50 |
5000 |
0.05-0.5 |
0.2 |
0-120 |
1500 |
1.5 |
3 |
|
ZHB-100 |
10000 |
0.05-0.5 |
0.2 |
0-120 |
2000 |
3 |
4 |
|
ZHB-150 |
15000 |
0.04-0.4 |
0.15 |
0-120 |
2200 |
4 |
7.5 |
|
ZHB-200 |
20000 |
0.04-0.4 |
0.15 |
0-90 |
2500 |
5.5 |
11 |
|
ZHB-300 |
30000 |
0.03-0.3 |
0.15 |
0-90 |
3000 |
5.5 |
15 |
|
ZHB-500 |
50000 |
0.02-0.2 |
0.06 |
0-90 |
4000 |
11 |
18.5 |
