Multi Pole Longitudinal H Beam Welding Line for Shipyard Welding

Multi Pole Longitudinal H Beam Welding Line for Shipyard Welding

1. Technical parameter

● Main framework width: 4000mm
● Main framework height: 1200mm
● Minimum rib distance (synchronous welding): 400mm
● Driven motor: 2.2Kw * 2 sets
● Welding speed: 0.15-2.4mm/min
● Free speed: 5000mm/min
● Welding head: 8 units (Finland Kemppi PRO4200 model)
● Welding method: Co2 MIG welding (subsection welding is possible)

2. Supply range

● Gantry framework: driven device * 2 sets, driven beam * 2 sets, up platform, column.
● Control system: electric cabinet, PLC program controller, AC frequency, control cable and so on.
● Welding system: 8 units Finland Kemppi PRO4200welder, Kemppi four-wheel wire feeding device, water cooling welding head, welding cable and so on.
● Arc guide device: arc guide electric position adjust device, linear guideway, pneumatic up/ down/ left/ right arc guide wheel pressing device, welding head holder, welding head adjust device.
● Co2 air supply system: flow tube, pipe, relieve device and so on.

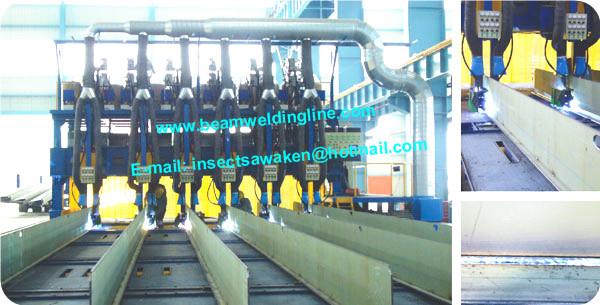

(Longitudinal pole panel wedling machine structure showing)

(T panel multi-electrode longitudinal welder machine)

 (Gantry reinforcing rib panel welding machine)
