1. The mooring winch can select:
- Electric or hydraulic drive
- One-side or double-side type
- Hydraulic or manual brake and clutch
- The certificates of CCS, DNV, ABS, GL, LR, BV, RINA, NK, KR and Other Classification Societies
- The specific specifications can be designed according to customer demands

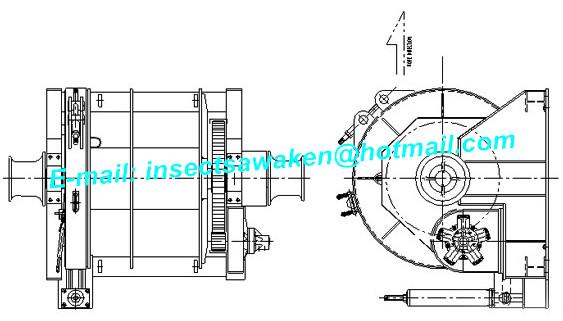

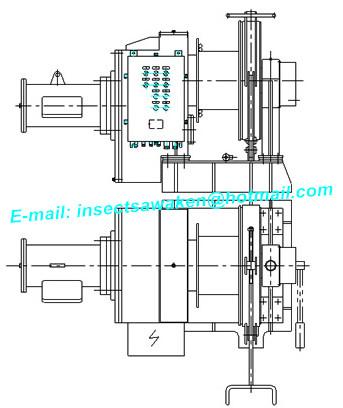

2. Marine electric springboard winch:
|
Name |
Rated Pull |
Rated Speed |
Drum Capacity |
Motor Power (KW) |
|
|
|
|
|
|
Electric |
Hydraulic |
|
10KN |
10 |
≥12 |
10×150 |
4.3/ 1.7 |
5.5 |
|
20KNElectric (Hydraulic)Mooring winch |
20 |
≥12 |
15×150 |
8.5/ 3.5 |
11 |
|
30KNElectric (Hydraulic)Mooring winch |
30 |
≥15 |
17×150 |
11/ 11/ 7.5 |
15 |
|
40KN |
40 |
≥15 |
18×150 |
16/ 16/ 11 |
22 |
|
50KN |
50 |
≥15 |
20.5×180 |
22/ 22/ 16 |
30 |
|
75KNElectric (Hydraulic)Mooring winch |
75 |
≥15 |
26×200 |
30/ 30/ 22 |
45 |
|
80KN |
80 |
≥15 |
26×200 |
30/ 30/ 22 |
45 |
|
100KN |
100 |
≥15 |
30×200 |
45/ 45/ 30 |
45 |
|
125KN |
125 |
≥15 |
30×200 |
45/ 45/3 0 |
75 |
|
160KN |
160 |
≥15 |
32×250 |
60/ 60/ 45 |
75 |
|
200KN |
200 |
≥9.6 |
41×250 |
45/ 45/ 30 |
75 |
|
250KNElectric (Hydraulic)Mooring winch |
250 |
≥9.6 |
44.5×250 |
60/ 60/ 45 |
90 |
