Chain Type Turning H Beam Welding Machine Half Automatic 4 Tons Chain Tilter

Chain Type Turning H Beam Turn Over Machine Half - Automatic 4 Tons

1. Equipment instruction

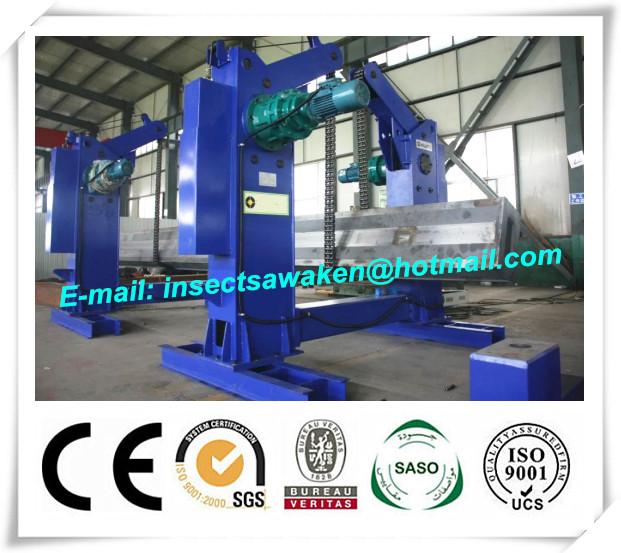

        This machine is 4 tons chain tilter. Through the chain of overturning, it can make work piece be located at the right position. Meanwhile it can be connected with other welding device, it can be turned into a half-automatic welding machine. It uses electromagnetic speed variation or frequency control.

2. Technical parameter

a. Model: LF-40
b. Rated load capacity: 4tons
c. Maximum eccentricity: 20mm
d. Overturning motor power: 2*2*1.1KW

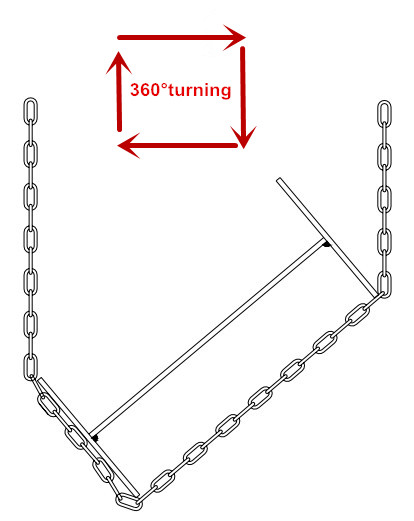

e. Overturning angel: 0-360°
f. Suitable maximum height of work-piece: 1200mm
g. Suitable maximum width of work-piece: 1200mm
h. Overturning speed: 520-5200mm/min, frequency control of motor speed

3. Supply range and components unit (2 Sets)

a. Constitute: frame, switching mechanism, flip arm, balance weight
b. Random material 1piece
