80mm Ram Strokes CNC Hydraulic Shearing Machine For H Beam Production Line
Price:
Negotiable
MOQ:
1
Delivery Time:
20 working days
Brand:
Friendship Machinery
Product Description
1. Simple introduction

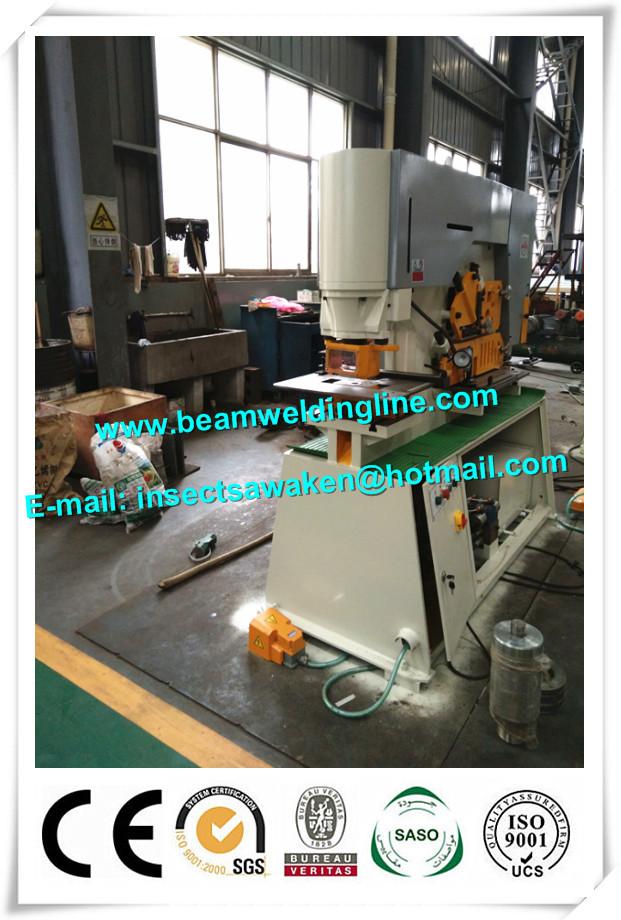

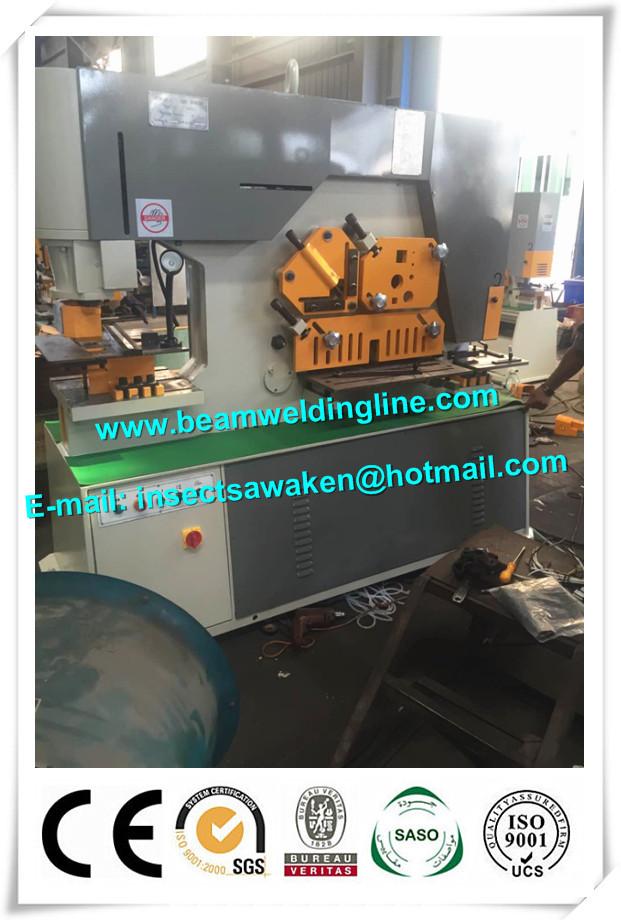

It adopts hydraulic driving system and they are the latest iron workers in our country, various metal plate, square bar, round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.
2. Technical parameter
| Model | Q35Y-16 |
| Pressure | 55Tons |
| Maximum shearing thickness | 16mm |
| Plate strength | ≤450N/mm2 |
| Cutting angle | 7° |
| Shearing size of one stroke | 16*250, 8*400mm |
| Ram strokes | 80mm |
| Number of strokes | 6cpm |
| Throat depth | 300mm |
| Punching thickness | 16mm |
| Maximum punching diameter | 25mm |
| Power of main motor | 4KW |
| Overall dimensions (L*W*H) | 1720*790*1880mm |
| Weight of machine | 1710kg |
