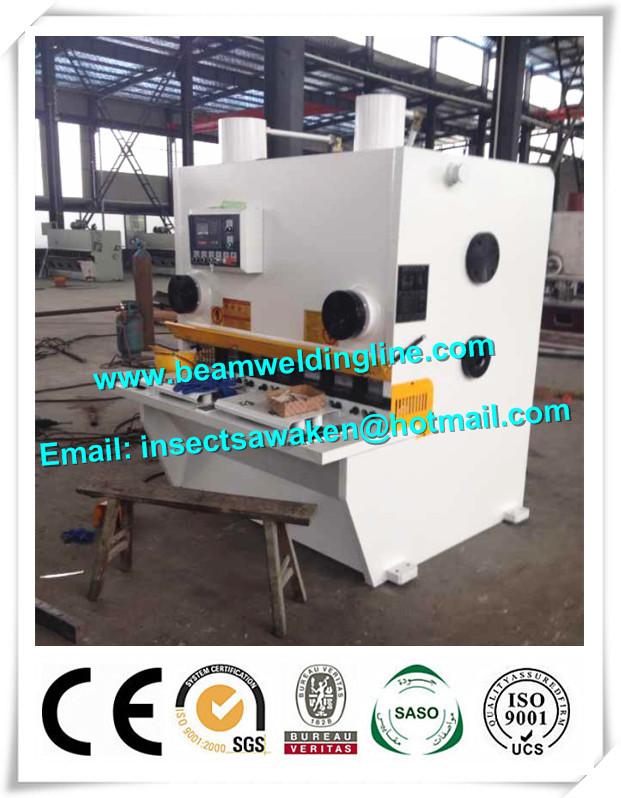

18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm
Price:
Negotiable
MOQ:
1
Delivery Time:
30 working days
Brand:
Friendship Machinery
Product Description
18.5KW CNC Hydraulic Shearing Machine For Steel Plate 2100 * 1850 * 2200mm
1. Technical parameters
| Model | Unit | QC11Y-12*1500 | |
| Controller | / | E21S | |
| Maximum shear thickness | mm | 12 | |
| Maximum shear width | mm | 1500 | |
| Sheared steel sheet strength | N/mm2 | 450 | |
| Shearing angle | ° | 0.5-2 | |
| Times of strokes | per/mm | 8-25 | |
| Blade length | mm | 1550 | |
| Back gauge range | mm | 20-600 | |
| Main motor power | KW | 18.5 | |
| Gear pump | Model | / | CP1-40-P-10R |
| Flow | ml/r | 40. | |
| Pressure | Mpa | 31.5 | |
| Net weight | kg | 8000 | |
| Overall dimension | mm | 2100*1850*2200 | |

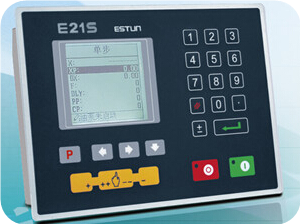

2. The main features of E21S numerical control device
● Positioning control of back gauge
● Intelligent positioning control
● One-side and two-side positioning which eliminates spindle clearance effectively
● Retract functions
● Automatic reference searching
● One-key parameter backup and restore
● Fast position indexing
● 40 programs storage space, each program has 25 steps
● Power-off protection
● FOB Price: USD11,000 (20’ GP container)
