QC12Y Swing Hydraulic Shearing Machine For Steel Plate , Hydraulic Shear Cutter
QC12Y Swing Hydraulic Shearing Machine For Steel Plate , Hydraulic Shear Cutter
1. Technical parameters
| Model | Unit | QC12Y-10x3200 |
| Controller | / | E21S |
| Maximum shear thickness | mm | 10 |
| Maximum shear width | mm | 3200 |
| Shearing angle | ° | 1.5 |
| Times of strokes | per/mm | 10 |
| Blade length | mm | 3300 |
| Distance between vertical columns | mm | 3420 |
| Back gauge range | mm | 20-600 |
| Work table height | mm | 765 |
| Main motor power | kW | 15 |
2. The device structure and character

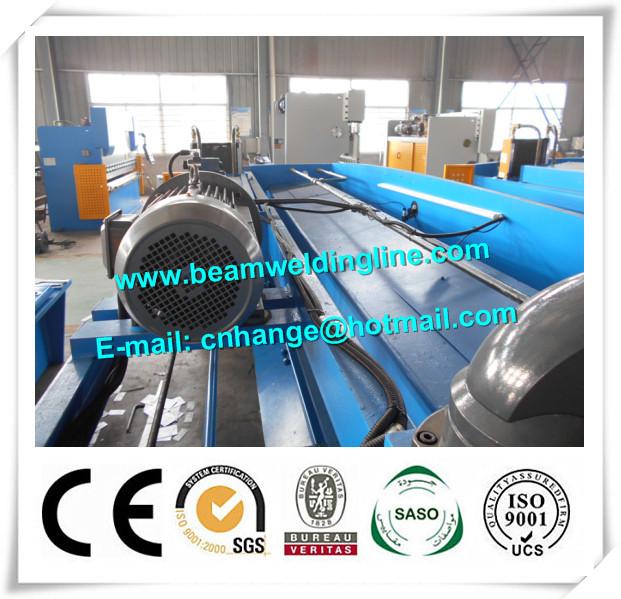

● Front bracket and back gauge: the front bracket placed on the workbench, indicate value by staff gauge, in order to reach the required stock value by adjust active stop dog, let cut thin plate is easy when use front bracket; the back gauge installed on up blade adapter, and it done lifting swing movement by up blade adapter, to adjust back gauge by driven motor, transmission by ball screw and straight guider after speed down by gearing, and it can manual micro-metric.
● Hydraulic system: it composed of control valve group, oil pump, cylinder, return cylinder, swaging cylinder, assembly hydraulic circuit and so on. The total system with the advantage like as reasonable construction, low noise, quick run, and good safety performance.
● Electrical system: it composed of control electrical box, internal connect line, control panel, main and vice motors, foot pedal and so on. It with the advantage like as high safety factor, overall performance is high.

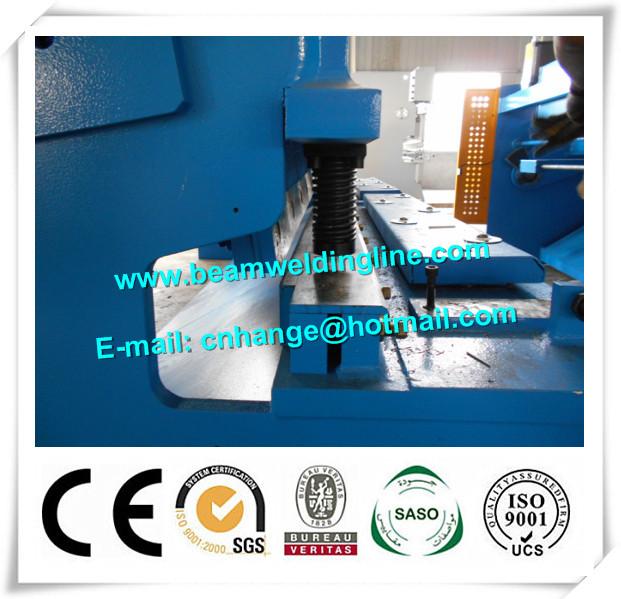

Shearing Machine Press Holder
