High Tech Steel Plate Bending Machine , Hydraulic Sheet Metal Brake Bending For 160T
Steel Plate Hydraulic Sheet Metal Brake Bending For 160T , High Performance

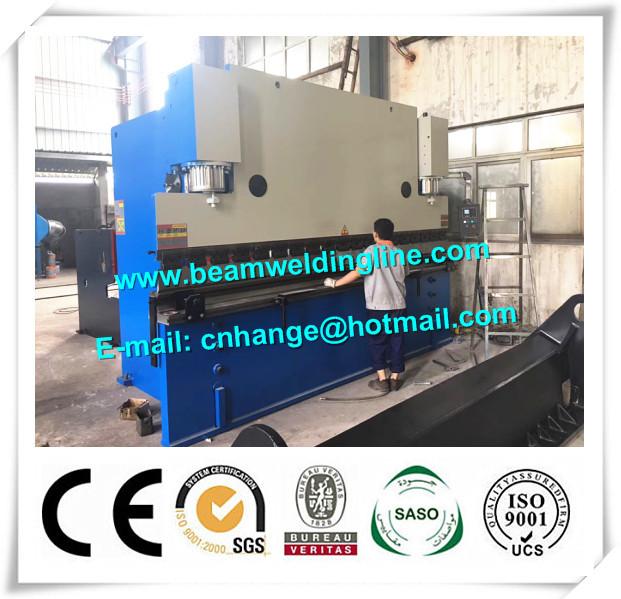

WC67Y- 160T/3200 Hydraulic Press Brake Machine
1. Technical parameters
| Model | Units | WC67Y-160T/3200 | |
| Maximum bended steel sheet thickness | mm | 7 | |
| Bended steel sheet strength | N/mm2 | 450 | |
| Nominal pressure | kN | 1600 | |
| Worktable length | mm | 3200 | |
| Distance between uprights | mm | 2520 | |
| Throat depth | mm | 400 | |
| Ram stroke | mm | 200 | |
| Maximum opening height | mm | 470 | |
| Gear pump | Model | / | CP0-25-P-10R |
| Flow | L/min | 25 | |
| Pressure | MPa | 31.5 | |
|
Ram speed |
Unloaded | mm/s | 60 |
| Work | mm/s | 8 | |
| Return | mm/s | 70 | |
| Working pressure of hydraulic system | Mpa | 26 | |
| Main motor power | kW | 11 | |
3. The main structure of the device
● Ram part
Hydraulic drive WC67Y-160T/3200 E21 NC press brake machine, ram part consists of ram, cylinder, and mechanical block fine-tuning structure. The left and right cylinders fixed on the frame, hydraulic system drive piston bring ram to move up and down.
● Worktable part
Button control the worktable on the front of it, motor drive back gauge move forward and backward, and numerical display the movement, travel switches to limit the front and back position.
● Back gauge part
Back gauge adopts motor transmission, drive two high precision ball screw synchronous move through sprocket, the control system displays the requirement value.
