Hydraulic Trolley And Cargo Stacker , Industry Fire Resistant File Cabinet For Oil Drum

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 20-30 working days
Brand: FRIENDSHIP MACHINERY
Product Description

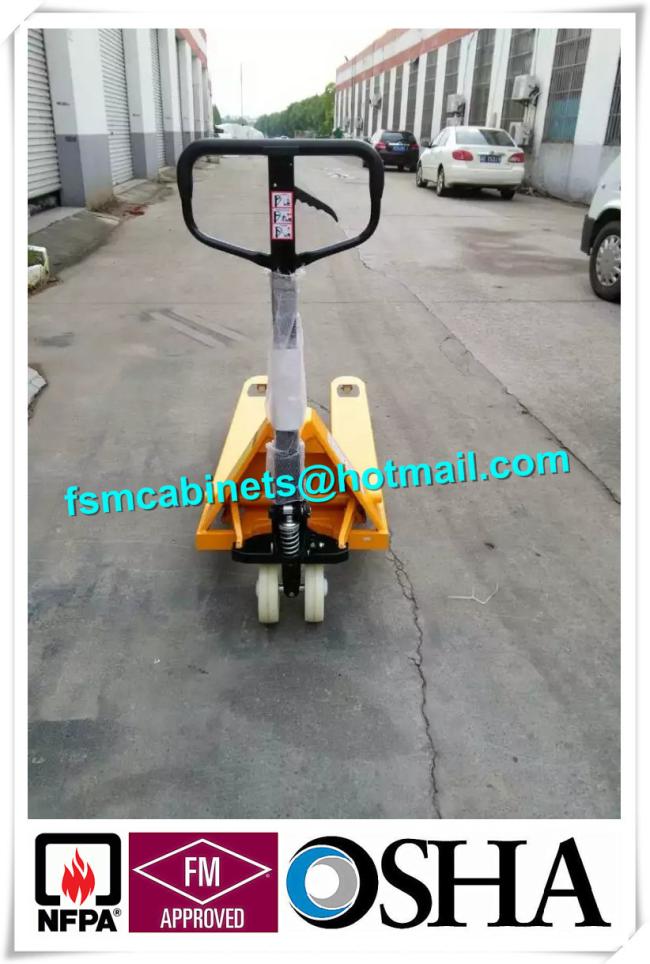

Hydraulic hand pallet trolley



● Safety is enhanced by the special high visibility 2 tone safety color scheme in durable powder coat paint.

● The reinforced, fully welded steel chassis is durable yet light.

● The high efficiency cast-pump jack has a one year manufacturer's limited warranty.

● Heavy duty iron steer wheels deliver superior durability.

● Heavy duty cast iron tow bars withstand high pulling stresses.

● Multiple grease fittings at pivoting and wear points make maintenance easy and deliver long component life.

● The high strength cushioned steel loop handle has a cast iron control lever with lift, neutral, and lowering positions.

● The neutral position eliminates premature wear on the hydraulic components in the jack.

● The handle automatically returns to vertical upon release.

● Fork tip entry wheels give smooth, easy pallet entry when handling fragile loads and are protected by built-in skid plates for greater durability and longer life.

● Hydraulic hand pallet truck . Easy roll pivot wheel tires, urethane load rollers, and guide wheels are durable and easily replaceable.

● Square section connecting rods have better bending resistance for increased durability in demanding applications.



Item Unit SYP-I-20 SYP-I-25 SYP-I-30
Capacity kg 2000 2500 3000
Min.Fork Height mm 85 85 85
Max.Fork Height mm 200 200 200
Max.Lifting Height mm ≥100 ≥100 ≥100
Fork Width mm 520/550/685 520/550/685 520/550/685
Fork Length mm 915/1100/1150/1220 915/1100/1150/1220 915/1100/1150/1220
Fork Size mm 150×50 150 ×50 150 ×50
Single Loading Wheel mm Φ80×84 Φ80 ×84 Φ80 ×84
Tandem Loading Wheel mm Φ80 ×60 Φ80 ×60 Φ80 ×60
Steering Wheel mm Φ180 ×50 Φ180 ×50 Φ180 ×50
Material of Wheel   Nylon/PU/Rubber Nylon/PU/Rubber Nylon/PU/Rubber
