Product Description
32mm Steel Rebar Threading Machine
Steel Bar Threading Machine
Steel Straight Thread Screw Rolling machine
CNC Drilling Machine
Bolt Threading Machine
1. Introduction
Rebar paralleling threading machine is designed for processing steel bar, it is including main framework, clamp, slider, cycloid reducer, feeding device, limited device, control system.
2. Features
● Change blade only cost 5 mins
● Threading will be finished in 30 secons and easy to operate
● 45# high steel after welded with a high precision
● Meet JGJI07-96 A standard
3. Specification
| No. | Item | Parameter |
| 1 | Rebar diameter | 16-40mm |
| 2 | Moor | 4KW |
| 3 | Voltage | 380V, 50HZ |
| 4 | Main axle rotation speed | 40-62rpm |
| 5 | Maximum threading length | 80mm |
| 6 | Weight | 560kgs |

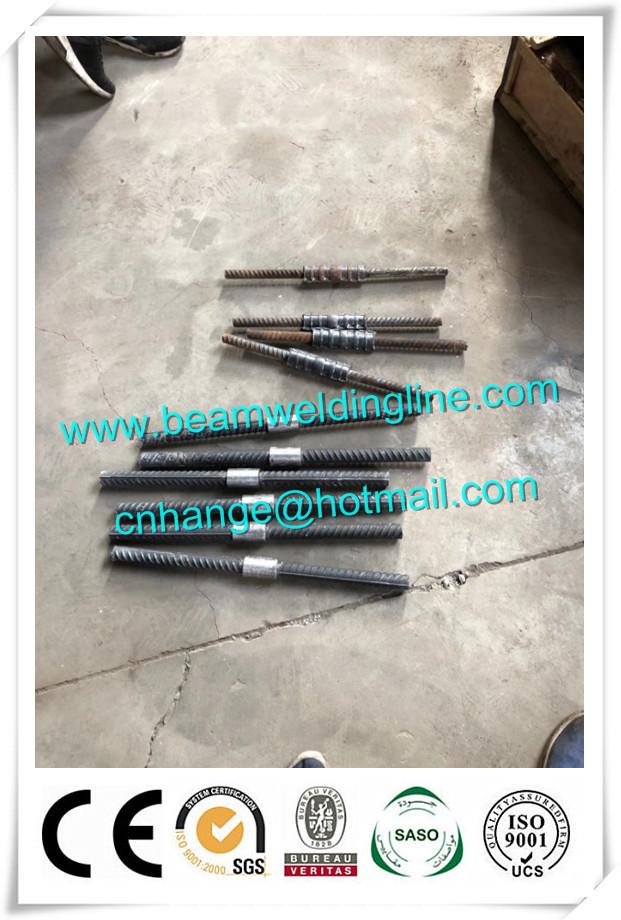

4. Connect sleeve & couples information list
| Model | O.D. (mm) | L (mm) | Thread pitch (mm) | Thread angle (°) | N.W. (kg) | EXW Price (USD) |
| Φ16 | 24 | 40 | 2.5 | 75 | 0.08 | 0.2 |
| Φ18 | 27 | 45 | 2.5 | 75 | 0.09 | 0.27 |
| Φ20 | 31 | 50 | 2.5 | 75 | 0.18 | 0.38 |
| Φ22 | 33 | 55 | 2.5 | 75 | 0.20 | 0.43 |
| Φ25 | 37 | 60 | 3.0 | 75 | 0.28 | 0.55 |
| Φ28 | 41 | 65 | 3.0 | 75 | 0.35 | 0.68 |
| Φ32 | 47 | 70 | 3.0 | 75 | 0.5 | 1.02 |
| Φ36 | 53 | 85 | 3.0 | 75 | 0.8 | 1.70 |
| Φ40 | 59 | 90 | 3.0 | 75 | 1.0 | 2.32 |
