CE Steel Column Beam Co2 Rotation Pipe Welding Manipulator
Rotation Welding Manipulator For Tank Seam Welding

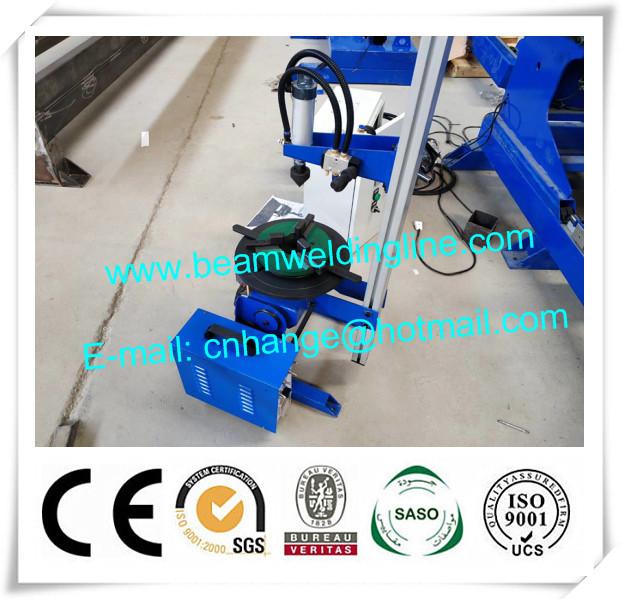

Welding Manipulator Positioner
1.The column beam adopts steel plate section structure, and the plane guide way is designed with good rigidity and low deflection of the structure.
2. crossbeam lifting adopts constant speed operation mode of AC motor, lifting smoothly and evenly.
3. measuring expansion adopts AC frequency conversion stepless speed regulation, constant torque output, smooth speed, guide rail for No. 45 steel, after welding to stress treatment, after planing, high strength, good stability, can guarantee long time non deformation.
4. cross beam expansion using rack and pinion drive, high transmission accuracy, smooth operation, speed, digital display and preset.
| Products form | Heavy duty | Middle size | Light duty | Small size | ||
| Model | DLH6070 | DLH5060 | DLH4050 | DLH3040 | DLH2030 | DLH1015 |
| Vertical elevation stroke | 6000 mm | 5000 mm | 4000 mm | 3000 mm | 2000 mm | 1000 mm |
| Boom retracting stroke | 7000 mm | 6000 mm | 5000 mm | 4000 mm | 2000 mm | 1000 mm |
| Frame rotation angle | ±180° | ±360° | ||||
| Frame rotation speed | 0.3 rpm | Manual | ||||
| Boom elevation speed | 1 m/min | 0.3 m/min | ||||
| Boom feeding speed | 0.12-1.2 m/min | Manual | ||||
| Trolley feeding speed | 3 m/min | Manual | ||||
| Trolley rail span | 2000 mm | 1800 mm | 1000 mm | 800 mm | ||
