SAW Pipe Welding Rotator Manipulator Easy Operation
Oil Tank Welding Rotator
Automatic Welding Positioner For Tank Seam Welding
Long seam welding rotator for tank
1. Description

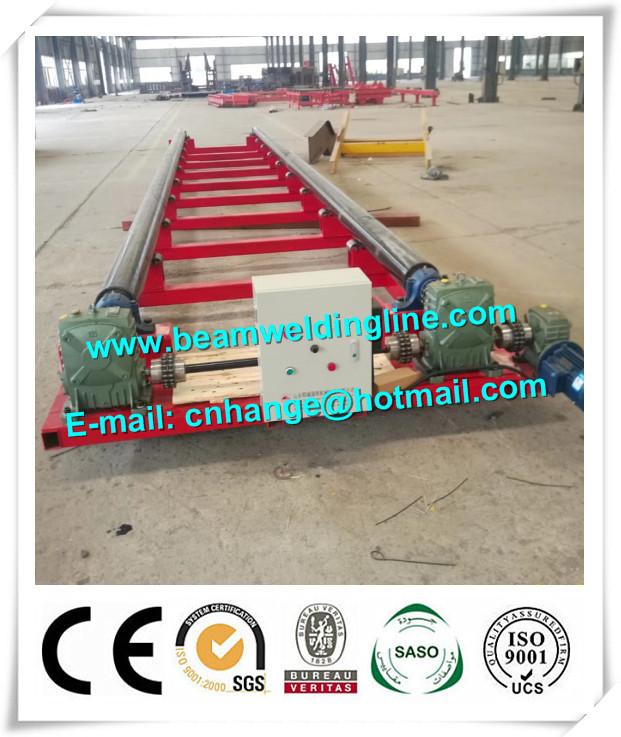

The welding rolls frame of HGZ series and HGK series designed and manufactured by the company absorbs domestics and overseas advantages of similar products. It is designed and manufactured according to using requirements for pressure vessel manufacturers. The product is applicable for manual welding and automatic welding of metal cylinder. It is featured with advanced technology, reliable quality, easy operation and other advantages.Two groups of roller unit with turn a certain angle are installed on base of drive and idler rotator, two groups of roller unit can turn a certain angle by revolve its mandril, so it can automatic adjusted according to specification of work piece, ensure stable and continuous running of work piece.
2. Specification
| Model | HGZ-05 | HGZ-10 | HGZ-20 | HGZ-40 | HGZ-60 | HGZ-80 |
|
Rated loading (T) |
5 | 10 | 20 | 40 | 60 | 80 |
|
Vessel diameter range (mm) |
250-2300 | 320-2800 | 500-3500 | 600-4200 | 750-4800 | 850-5000 |
|
PU roller dia. And width (mm) |
250*100 | 300*120 | 350*140 | 400*180 | 450*180*2 | 450*200*2 |
|
Linear speed (mm/min) |
100-1000mm/min | |||||
