Infrared Metal Black Car Reversing Camera Rear View 1.3 Megapixel Waterproof
Infrared Metal Black Car Reversing Camera Rear View 1.3 Megapixel Waterproof
Character:
1) Resolution: 1.0Megapixel / 1.3 Megapixel Optional;
2) 18PCS Leds , 10-15M IR Distance;
3) 3.6mm wide angel lens view 120degree;
4) 0-60 Degree Tilt Adjusting;
5) Suit for Front / Rear View of Bus, Truck, Van , Police Car ect
Specifications:
| Model NO | C801-AHD ( 1MP ) | C801-AHD ( 1.3MP ) | |||
| Type | Front / Rear view waterproof camera | ||||
| Image Sensor | 1/4” CMOS Sensor AR0130 | 1/3”CMOS Sensor AR0130 | |||
| TV System | PAL/NTSC | ||||
| Effective pixels | 1MP | 1.3MP | |||
| Picture Elements | 1280(H)*720(V) | 1280(H)*960(V) | |||
| S/N Ratio | More Than 44 dB | More Than 44 dB | |||
| Infrared Spectrum | 850nm | N/A | |||
| Min. Illumination | 0.01Lux(Color) / 0 Lux IR On | ||||
| White Balance | Auto | ||||
| Infrared LED | 18 LEDS | ||||
| Infrared LED Range | 10-15M | ||||
| Lens | Megapixel fixed Lens 3.6mm/6mm | ||||
| Pan Adjusting | N/A | ||||
| Tilt Adjusting | 0-60 Degree | ||||
| Power Consumption | 110mA | 80mA | |||
| Input Voltage | DC12V±10% | ||||
| Weight | 435g | ||||
| Dimension | L69 x W76 x H78 mm | ||||
| Video Output | 1 Vp-p, 75ΩComposite, 4 ways Din Jack | ||||
| Operating Temp | -10°C to +50°C | ||||
| Waterproof Rating | IP68 | ||||

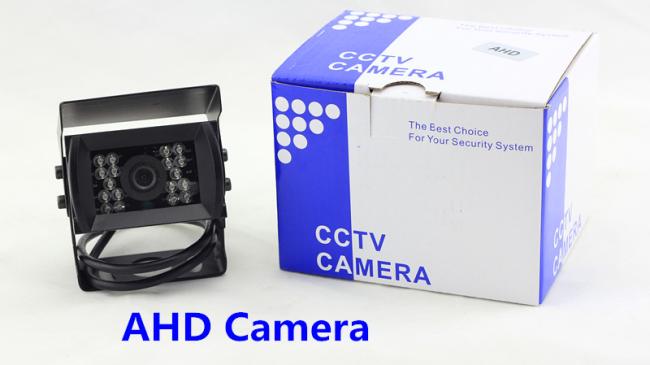

Product's Picture:
Advantages & services
1. Professional product orientation, we are the manufacturer
2. Moderate price, unlimited on MOQ, immediately delivery time for small amount orders
3. Leading techniques: we have the most innovative & creative R&D team
4. Quality control: full testing for all outgoing products
5. High quality insurance: 1% repair rate
6. Worldwide recognition: ISO,CE, FCC, RoHS certificates, Stable quality
7. Great after-sales service:12 months quality insurance on our products
8. Supports the logo silk printing service without MOQ limited
9. Supports the design service for products & gift box
10. Offer the SDK development service for the products
Applications:

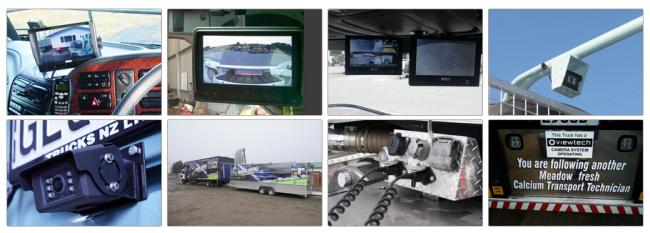

Installation:
