IP67 Waterproof Vandalproof Vehicle Mounted Cameras 420 TVL Mini Metal Dome
Price:
negotiation
MOQ:
1
Delivery Time:
3-5 working days
Brand:
Recoda
Product Description

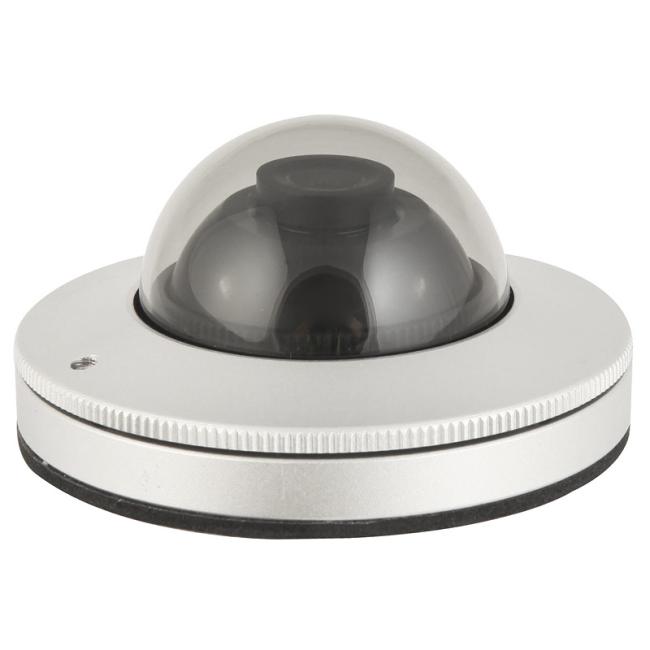

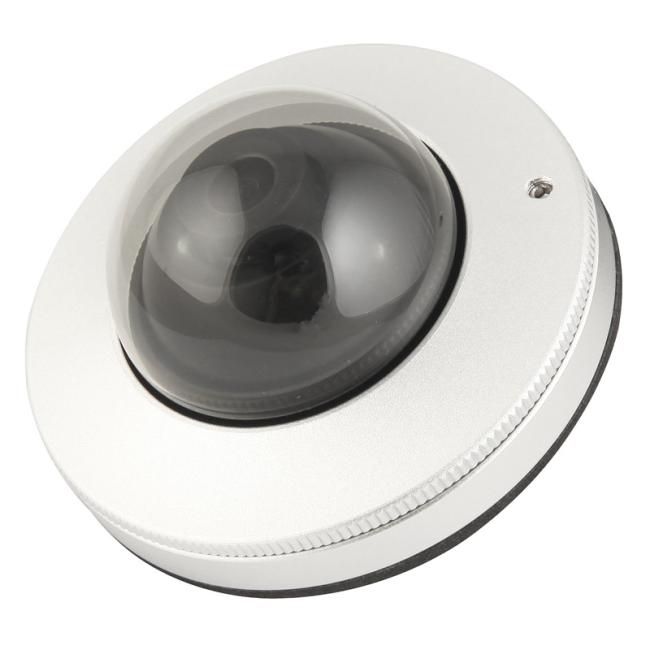

IP67 Waterproof Vandalproof Vehicle Mounted Cameras 420 TVL Mini Metal Dome
Model:C-806
• Mini Metal Dome Camera
• IP67 Water-proof & Vandal-proof
• 1/3”Sony Color CCD
• Resolution: 600tvl
• Lens Optional: 2.2mm
Specifications:
| Model | C806 | C806-S |
| Pick up Device | 1/3” Color SONY CCD | 1/3" CMOS 1089 |
| TV System | PAL/NTSC | PAL/NTSC |
| Picture Elements | PAL: 752Hx582V NTSC: 768Hx494V |
PAL: 728Hx488V NTSC: 762Hx504V |
| Horizontal Resolution | 600TVL | 600TVL |
| Sensitivity | 1.3 Lux at F1.2 | |
| Scanning System | 625TVL | |
| 2:1 Interlace | ||
| Synchronization | Internal | |
| Infrared Spectrum | 850nm | |
| S/N Ratio | More than 50 dB, (AGC Off) | |
| Auto Gain Control (AGC) | Auto | |
| White Balance | Auto | |
| Electronic Shutter | Auto | |
| Back Light Compensation | Auto | |
| Infrared LED | N/A | |
| Infrared LED Range | N/A | |
| Video Output | 1 Vp-p, 75Ωcomposite, BNC x1 | |
| Audio Output | for options | |
| Mirror | for options | |
| Gamma Ratio | 0.45 | |
| Lens | f2.2mm wide-angle lens | |
| Exterior Focus Adjustment | N/A | |
| Lens Mount | M12XP0.5mm Thread | |
| Pan Adjusting | +/-180 degree | |
| Tilt Adjusting | 0-50 degree | |
| Power Supply | 12V DC ±10% | |
| Power Consumption | 75mA | 55mA |
| Dimensions (L X W X H) | D64.7xH36.5(mm) | |
| Net Weight | 90g | |
| Weatherproof/Water Proof | IP67 | |
| Operating Temperature | -10°C to +50°C | |
