RCDP6 Side View Idden Cameras In Cars 1.0M Pixels PAL/NTSC TV System With IR Nigh Vision
High quality hidden vehicle side view camera with IR nigh vision
Car description:
This is a high quality AHD (Analog High Definition ) Color camera, using the latest CMOS technology, the camera can produce high definition image with little distortion.
Analog High Definition is a high video definition standard, through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal. AHD system is same as traditional analog system , using common 75-3 coaxial cable to carry out as far as 500 meters HD video without any video signal loss.
Features:
- 1 Mega pixel COMS sensor 720P(1280x720) AHD high definition Camera,
- 3.6mm megapixel lens
- 12DV IP67 Weather-proof
- Dimension: Φ23*H31(mm) Front/ rear/ side view
Specifications:
| Model | RCDP6AHD100 |
| Pick up Device | 1/4” CMOS sensor AR0141 |
| TV System | PAL |
| Picture Elements | 1280(H)*720(V) |
| Effective pixels | 1.0M pixels |
| S/N Ratio | More than 48 dB, (AGC Off) |
| Auto Gain Control (AGC) | Auto |
| White Balance | Auto |
| Electronic Shutter | Auto |
| Back Light Compensation | Auto |
| Day/Night(B/W) | N/A |
| Infrared LED | N/A |
| Infrared LED Range | N/A |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec |
| Back Light Compensation | Auto |
| Video Output | 1 Vp-p, 75Ωcomposite 4 ways Din jack x1 |
| Audio Output | N/A |
| Mirror | Available |
| Lens | F2.3mm Standard Lens |
| Exterior Focus Adjustment | N/A |
| Lens Mount | M12XP0.5mm Thread |
| Pan Adjusting | N/A |
| Tilt Adjusting | -52°~+52° |
| Power Supply | 12V DC ±10% |
| Power Consumption | 70mA |

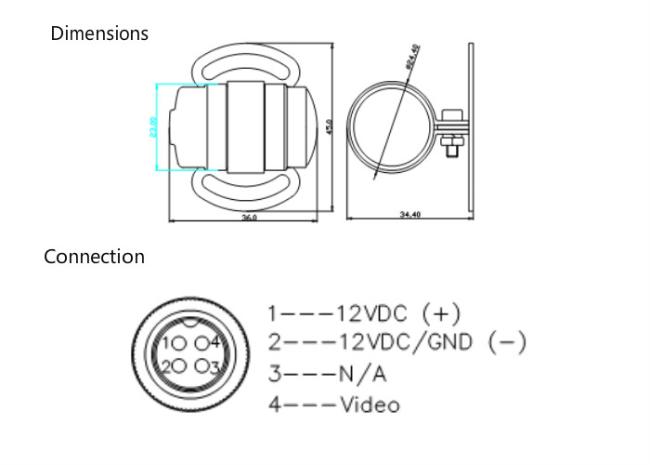

| Dimensions (ø X H) | 24.4x36mm |
| Net Weight | 96g |
| Weatherproof/Water Proof | IP67 |
| Operating Temperature | -10°C to +50°C |
Recoda C802 Hidden Cameras in car Pictures
