TITAN the high quality 3 axle fuel dolly drawbar tanker trailers for sale
TITAN the high quality 3 axle fuel dolly drawbar tanker trailers
TITAN product the high quality 3 axle fuel dolly drawbar tanker trailers is used transfer water,petroleum, crude oil, diesel, gasoline fuel, asphalt, chemical, corrosive etc.
The material is also made of carbon steel,stainless steel,aluminum alloy material and so on. The loading capacity can be provided according to the customer's demand.
Titan Vehicle fuel tank trailer -----Specification
| Manufacturer | Titan Vehicle Co.,Ltd |
| Product type | Fuel Tanker Semi Trailer Series |
| Tank Body | |
| Shape | Round or Square (optional) |
| Dimension | 11500*2500*3900mm(Exact size depends on the final design) |
| Tare weight | About 8000kgs-12800kgs |
| Capacity | 40000liters |
| The tank body material | 5mm or 6mm/Q235 Carbon Steel Plate/ Aluminum Alloy 5083/ Stainless Steel |
| The Fore side and back side head | 6mm or 7mm/Q235 Carbon Steel Plate/ Aluminum Alloy 5083/ Stainless Steel |
| Manhole Cover | Stainless steel manhole,diameter 500mm,2/3/4 pieces |
| Bottom Valve | Stainless steel bottom valve |
| Discharging valve | Diameter is 3 or 4 inch |
| Compartments | optional |
| Discharging Pipe | 4”rubber tube ,2 pieces,6m /each |
| Chassis | |
| Main Beams | Steel Q345 or Aluminum Alloy |
| Axle | 13T/16T,FUWA/BPW Brand |
| ABS system | Optional |
| Suspension | Mechanical suspension (Germany type or America type) or Air suspension (china brand or BPW brand ) |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10Layer,optional |
| Tires | 12.R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| King pin | JOST 2.00 or 3.5 inch |
| ABS | Optional |
| Valve | WABCO valve |
| Spare Tire Carrier | 2pieces |
| LED Light | One set |
| Accessories | One standard tool box |
| Shipping terms | By bulk cargo ,RORO or 40HQ containers |
| Note : buyer | According to the requirement of buyer |
| 3 axle 42000liters fuel tank trailer | http://youtu.be/5byl2xiVH8c |
| 3 axle Aluminum Alloy | https://youtu.be/hPEqCi0rasw |
| 3 axle 42CBM oil tank trailer | https://youtu.be/eSSMS92w7ZU |
| 2 axle fuel tank trailer | https://youtu.be/xNVyRmyX-HI |
Titan fuel tank trailer -----Main featurer :
1.The cross section of tank is international standard small circle arc so that the stress of tank is more uniform and stronger
2.The thickness of plate can meet international standard
3.The tank structure is low in center of gravity and excellent in stability
4.The heel protection facility is install on top of tank to improve safety of vehicle
5.The loading and unloading system is designed according to European standard ,being safe and environment friendly.
6.The ladder and roof walkway are design for skid resistance.
7.The back protection material is high-strength steel,the distance of which is large to prevent from drilling and collision in order to improve safety of vehicle.

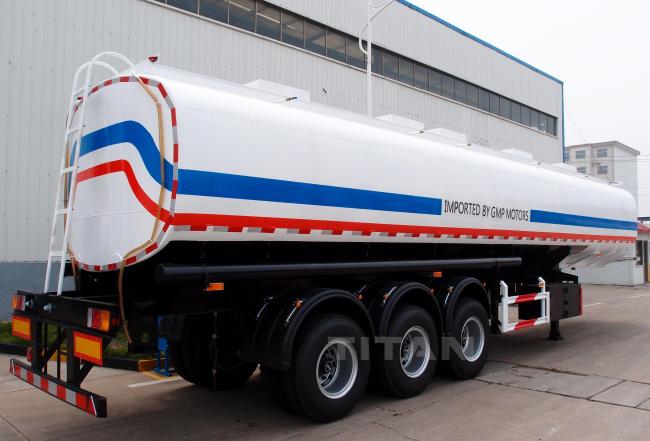

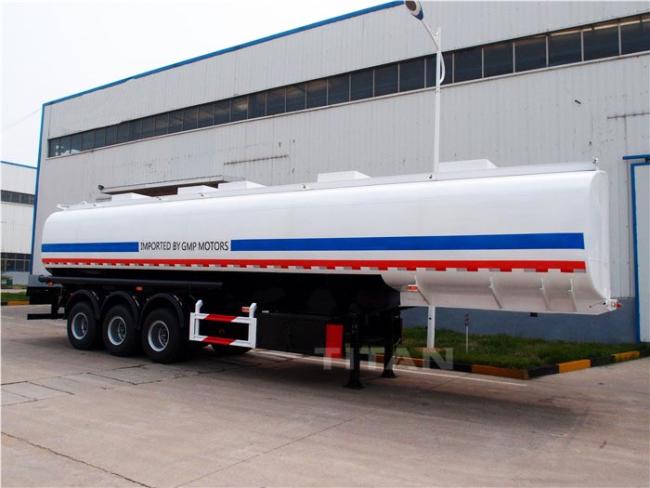

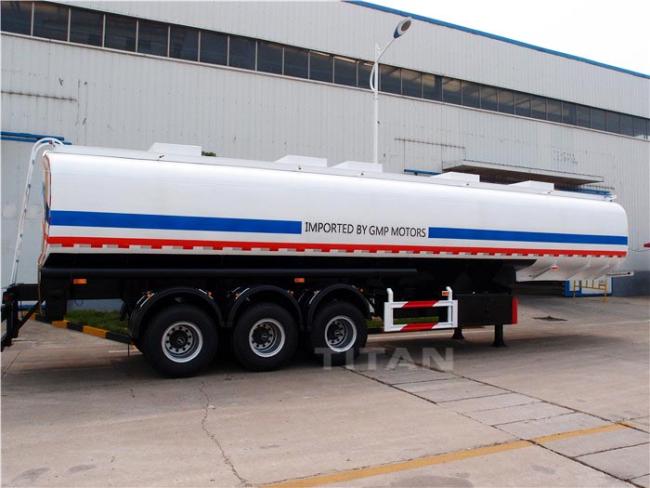

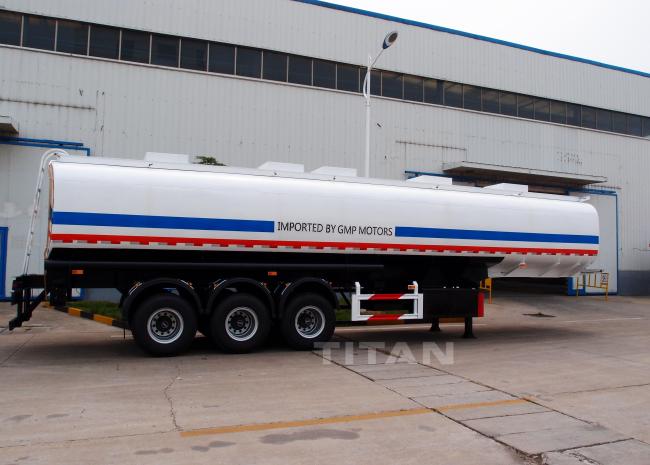

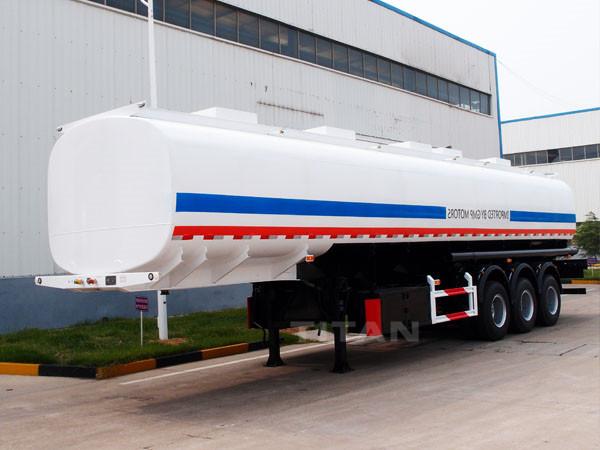

Products show
TITAN the high quality 3 axle fuel dolly drawbar tanker trailers
TITAN the high quality 3 axle fuel dolly drawbar tanker trailers
TITAN the high quality 3 axle fuel dolly drawbar tanker trailers
TITAN the high quality 3 axle fuel dolly drawbar tanker trailers
TITAN the high quality 3 axle fuel dolly drawbar tanker trailers
Titan vehicel fuel tank trailer ----Processing technology and processing flow
1,Splice plate welded by plasma
2,The largest splice plate machinery of Asia, imported from Europe
3.The biggest tanker curling equipment in Asia, with the maximum length of 15 meters
4.Working scene of the tanker curling machinery
5.Small tanker curling equipment, special for double-edged welding
6.Gantry welding equipment, special for stainless tanker
7.Tank heading machine
8.Rust cleaning on the surface
9.Spandrel girder welding
10 .Appurtenances welding
Shipping:
Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
