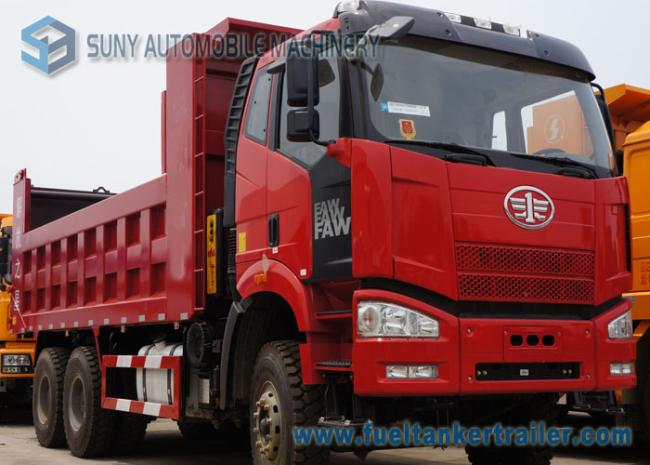

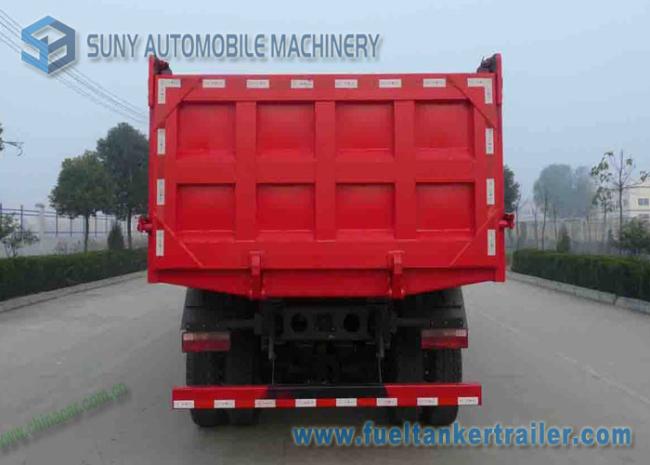

FAW Jiefang 6x4 Dump Garbage Trucks 3 Axles 30 ton 40 ton capacity
FAW Jiefang 6x4 Dump Garbage Trucks 3 Axles 30ton-40ton capacity
Description&Applications:
Garbage truck is the urban sanitation special vehicle which is used to highly collecting,transporting and unloading garbage and could avoid to leak along the way leading to secondary pollution in the collecting and transiting process.It is the ideal urban sanitation equipment. I can carry big and heavy garbage such as construction garbage,
Competitive Advantage:
1- powful R & D capabilities------we can design and produce the truck according to different trash cans of different countries so that it can be fit for the different countries’ demand.
2- strict quality control----stable quality for each truck
3- competitive price-----based on same product, our price is most competitive
4- best service-----we cherish each customer and opportunity.
Specifications:
FAW Jiefang 6x4 Dump Garbage Trucks 3 Axles 30ton-40ton capacity
| Products Technical Specification | |
| Type | 6*4 Dump truck |
| Brand | FAW |
| Cab | J6P,Half row,With A/C,sleeper |
| Vehicle Description | |
| Overall dimensions(mm) | 8450*2500*3680 |
| G.V.W (kg) | 25000 |
| Curb weight(vehicle) (kg) | 12110 |
| Loading capacity (kg) | 25000-45000 |
| Max speed (Km/h) | 85 |
| Engine | |
| Engine model | CA6DL2-35E4U2 |
| Maximum power | 261kw / 350hp |
| Displacement (lit) | 8.60 |
| Engine Manufacturer | FAW |
| Chassis Description | |
| Chassis Model | CA3250 |
| Wheel base | 3800+1350 |
| F/R track base(mm) | 2050/1830 |
| F/R overhang(mm) | 1470/990 |
| Approach/Departure angle(°) | 24/45 |
| Spring plate | 12/12 |
| Front axle / rear axle | 300 |
| Type of fuel | Diesel |
| Transmission | CA12TA160M ,12-Speed |
| Brake System | Air braking |
| Operation control system | Power steering |
| Electric system | 24V |
| Tire specification | 12.00R 20 |
| Up-parts Description | |
| Van dimensions(mm) | 5400/5600/5800*2300*1500/1800 |
| Van description |
Equipped with material of carbon steel, side 6mm thickness; bottom 8mm thickness Equipped with front hydraulic ram, single door. |
| Optional Configuration | |
| Cargo body thickness,side door,and HYVA brands hydraulic cylinder,etc. | |
