WD10G210E22 6T 668D 668G Heavy Duty Wheel Loader
Brand New 6T 6Ton SEM Type 668D 668G Wheel Loader For Sale
6T 668D 668G Heavy Wheel Loader With Weichai WD10G210E22 Engine Fuel Tank 300L
Main performance parameters of 668G loader
一
1, Full hydraulic pilot manipulation, lightweight flexible, micro excellent results.
2, Double pump confluence working system, coaxial flow amplifying steering, energy-saving effect is remarkable.
3, Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.
4, Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.
5, Single dump cylinders, "Z" type bucket mechanism, achieve huge digging force.
6, Suitable for the working condition of heavy homework drive axle, gear modulus, in view of the large production condition of design, strong durability.

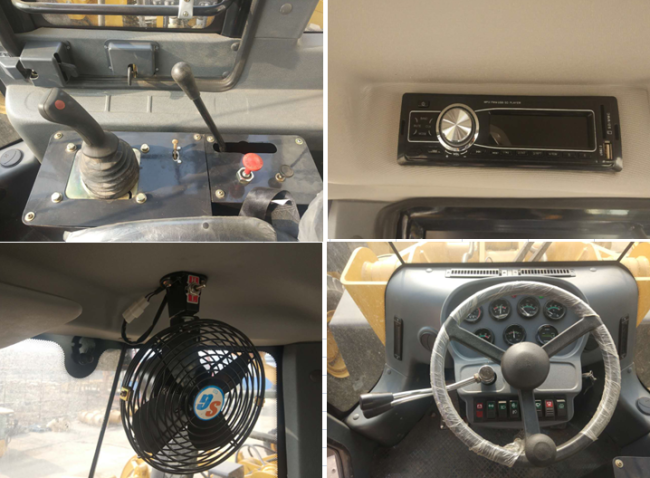

7, Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.
| Drive axles | 21 | main reducing spiral |
bevel gear grade 1reduction |
|
| 22 | decelerating mode |
planetary reduction,grade 1 |
||
| 23 | wheel base (mm) | 3350mm | ||
| 24 | wheel tread | 2250mm | ||
| 25 | minimum ground clearance | 450mm | ||
|
Hydraulic system |
26 | system working pressure | 18MPa | |
| 27 | boom lifting time | 6.15+0.25s | ||
| 28 | total time | 10.65+0.5s | ||
| 29 | fuel tank capacity | 300L | ||
| 30 |
function of leveling automatically |
yes | ||
|
Brake system |
31 | service brake |
air over hydraulic disc brake on 4 wheels |
|
| 32 | parking brake | manual parking brake | ||
|
Tyre |
33 | type specification | 26.5-25 | |
| 34 | front tyre pressure | 0.4Mpa | ||
| 35 | rear tyre pressure | 0.35Mpa | ||
