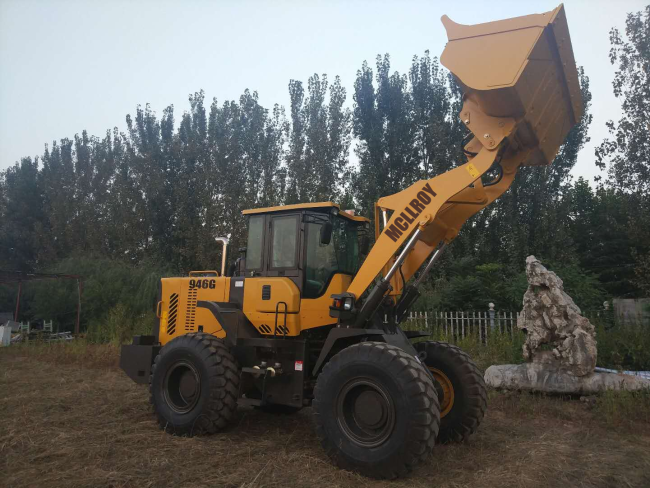

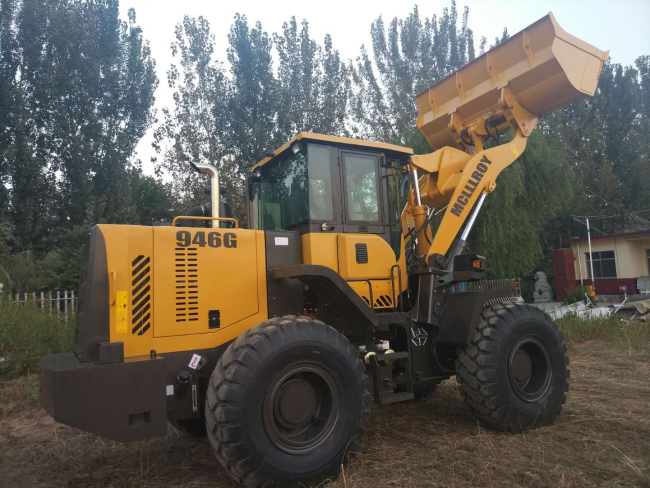

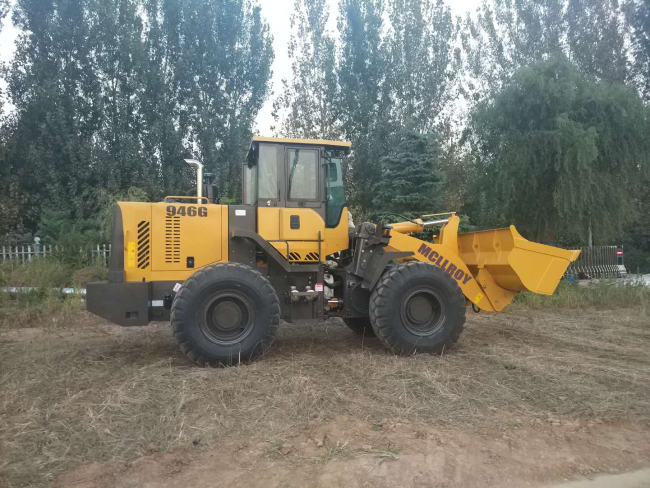

Euro Ⅱ 38km/H 4T 946G Heavy Duty Wheel Loader
Main performance parameters of 668G loader
Maximum Speed 38km/H Heavy Construction Equipment 4T 946G Hydraulic Wheel Loader
一
1, Full hydraulic pilot manipulation, lightweight flexible, micro excellent results.
2, Double pump confluence working system, coaxial flow amplifying steering, energy-saving effect is remarkable.
3, Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.
4, Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.
5, Single dump cylinders, "Z" type bucket mechanism, achieve huge digging force.
6, Suitable for the working condition of heavy homework drive axle, gear modulus, in view of the large production condition of design, strong durability.
7, Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.
| Performance | 1 | rated loading | 4000kg |
| 2 | overall weight | 12500kg | |
| 3 | bucket capacity | 2.3-2.5m3 | |
| 4 | maximum traction force | 120KN | |
| 5 | maximum breakout force | 125KN | |
| 6 | maximum grade ability | 30℃ | |
| 7 | maximum dump height | 2950mm | |
| 8 | maximum dump reach | 1055mm | |
| 9 | overall dimension (L×W×H) | 7295*2574*3324mm | |
| Engine | 10 | model | WP6G175E22 |
| 11 | type | lnline water cooling dry cylinder injection | |
| 12 | NO. of cylinder-bore*stroke | 105*130mm | |
| 13 | rated power | 129kw-2200r/min | |
| 14 | maximum torque | 640N.M | |
| 15 | Emission standards | Euro Ⅱ | |
|
Transmission system |
16 | torque converter | YJ315-X |
| 17 | gearbox mode | Power shaft normally engaged straight gear | |
| 18 | gears |
2 forward shift 1reverse shift |
|
| 19 | maximum speed | 38km/h | |
| Drive axles | 20 | main reducing spiral | bevel gear grade 1reduction |
| 21 | decelerating mode |
Planetary reduction grade 1 |
|
| 22 | wheel base (mm) | 3200mm | |
| 23 | wheel tread | 2250mm | |
|
Hydraulic system |
24 | system working pressure | 16MPa |
| 25 | boom lifting time | 5.73 | |
| 26 | total time | 10±0.2s | |
|
Brake system |
27 | service brake |
air assist disc brake on 4 wheels |
| 28 | parking brake | Manual disk brake | |
|
Tyre |
29 | type specification | 20.5-25 |
| 30 | front tyre pressure | 0.4Mpa | |
| 31 | rear tyre pressure | 0.35Mpa |
