83KW 8 Ton Heavy Construction Machinery SugarCan Loader Low Fuel Consumption Grab Weight 1200kg

8Tons Sugarcan Loader with grabber Farming equipment with Cummins engine for sale hydraulic system pressure

SPECIFICATIONS FOR 8 TONs SUGARCANE LOADER

Model:MSL8000

Operation weight:8000KG

Dimension(L*W*H):6700x2600x3200mm

Brand of Engine:Cummins

Engine Model:4BTA3.9-C110

Rated Power:83KW

Grab and Load weight:1200KG

Max. Height of Snatch:5600mm

Max. Dumping Height:5300mm

Max. Grabbing Radius:4250mm

Swing Angle of boom:100°

Hydraulic System Pressure: 16MPA

Hydraulic System Flux:40/40 cc

Opened Width of Grasping:1850mm

Height of Piler to Ground:420mm

Walking Speed:≤30KM/H

Wheel base:2670mm

Track base:2200mm

Tire Type:23.1-26

Perfomance characterristics:

1. Engine:adopt Cummins diesel engine ,excellent perfomance ,low fuel consumption ,low noise ,larger power reserves.

2. Oil tube :Choose high-pressure rubber pipe,which suits all the bad working envirionment ,antiquake,anti-loose,stand fire.

3. Hydraulic working system:taking advance hydraulic system,it can reduce wobble with buffer function,and the machine service lift can be extend.

4. Transimision system :transmission giving infinitely variable speed in all of ranges ,hydraulic ,braking ,working and walking .

5. Structure:choose the advanced steel with excellent quality,improving the strength of structure in a high level ,which guarantee the safety of traveling and construction.

6. Surface treatment:derusting with large size shot blast machine ,to change welding stress.

7. Surface spary coating:antirusting paint ,finishing paint.

8. The process of welding :carbon dioxide MIG welding .

9. Working table with water temperature gauge ,oil temperature gauge and current working time.

10. Famous brand hydraulic componets are adopted ,of which the operating life is long,the power is driving and the opeating speed is fast.

11. Ascendant performance of complete appliance ,with extraordinary operation efficiency.

12. Durable working system,low maintain cost.

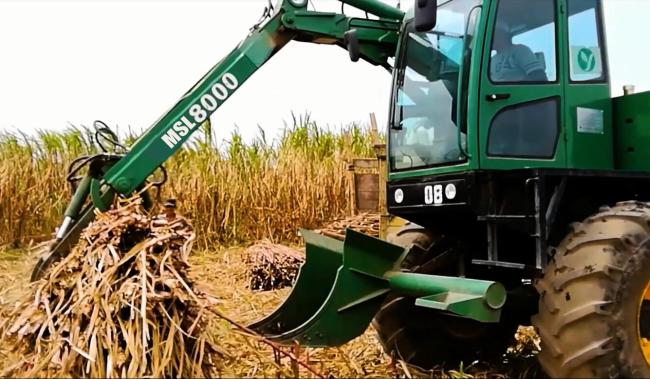

Field operation drawing:

Customer Storehouse:

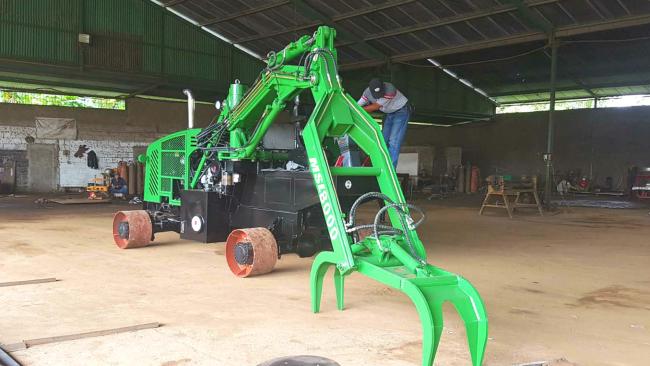

Procuct Process:
