Farming Horse 12.5Kw 10 Km/H Small Garden Tractor Loader
Articulated mini wheel loader MY620 kubota tractor with beehives mover
Small garden tractor loader MY620 Mini farming horse stable cleaning loader machine
I. Loader Description:
1>Our MY620 is a multifunctional machine. It adopts european standard quick coupling system, which enable the customer use hundreds of different attachments.
2>It is hydrostatic four wheel drive machine, has four independent hydraulic wheel motor.
3>Compared with other same size machines, its telescopic boom which can reach 2750mm widely increase its working scope.
4>Special articulated structure with seat in front position helps it gain a much smaller turning radius than other same size machine.
5>It's control is very simple by levels and buttons. The pressure testing connector on chassis, and all relative warning lights and sounds also greatly simplified the maintainence.
Detailed specifications as below. Welcome to visit our factory to test it yourself, we are confident that you'll fall in love with it!
II. Specification:
| Model | MY620 |
| Max. length | 2195 mm |
| Max. width | 980 mm |
| Max. height | 2100 mm |
| Max. reach(boom extended) | 2750mm |
| Max. reach(boom retracted) | 2270mm |
| Bucket capacity | 300L |
| Rated loading capacity | 500kg |
| Tipping load | 800kg |
| Min. turning radius | 1980mm |
| Turning angle | 400 |
| Speed | 10 km/h |
| Weight | 1100 kg |
| Standard tire | 23X8.5-12 |
| Tire pressure | 2.8 bar |
| Oil tank capacity | 35L |
| Pressure | 190bar |
| Working oil flow | 33L/min |
| Tracking oil flow | 50L/min |
| Oil model(mineral oil) | L-HL46 |
| Engine brand | Yanmar or Kubota |
| Number of cylinder | 3 |
| Cooling system | Water cooling |
| Rated power | 12.5Kw |
| Rotation speed | 2800 r/min |
| Fuel tank capacity | 18L |
| Battery capacity | 55Ah |
| Voltage | 12v |

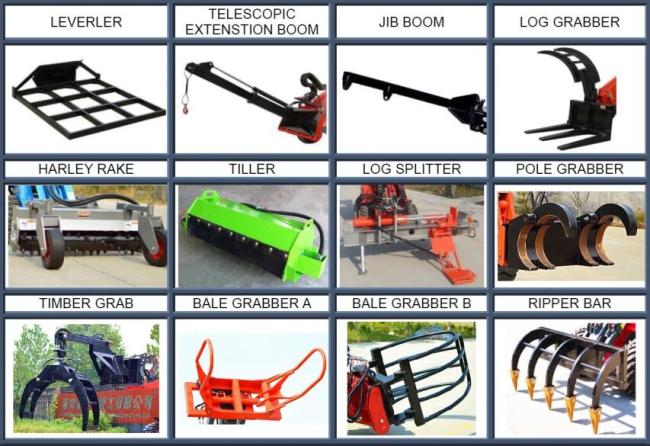

III.Attachment:

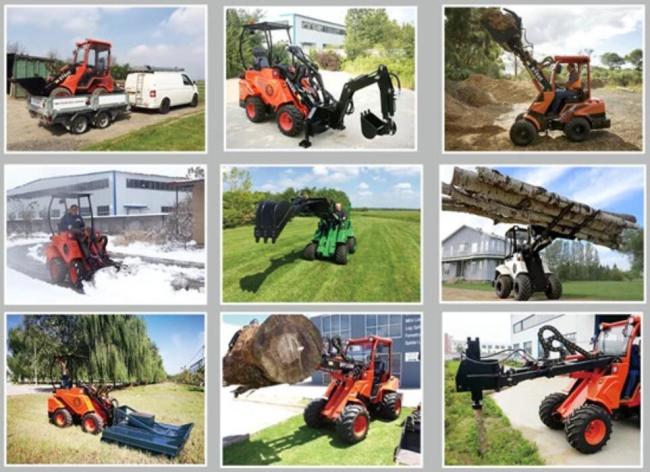

loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.

III.Application:

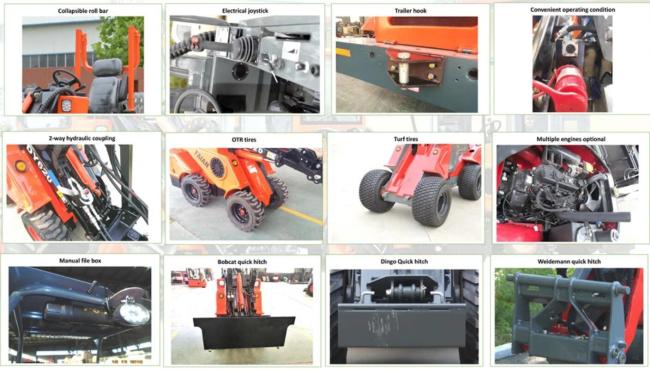

IV.Product details:
