Agricultural Tractor 2750mm Compact Aritulated Mini Wheel Loader
Agricultural Tractor Loader MY620 Compact Aritulated Mini Wheel Loader

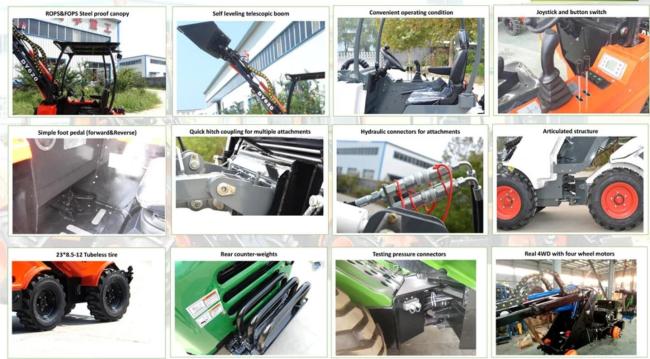

I. Loader Description:
Power
All models have separately four hydraulic wheel motor, they are real four wheel drive hydrostatic dive.
All machines adopts world famous Kubota/Perkins which guarantees the quality and meanwhile more powerful.
All the actions of the machine can be achieved by only joystick/levels, buttons and switches, reasonable arrangements of all the controls makes the operating biggest comfortable.
Thanks to the quick coupling system, you can change into different attachments in just one minute, which is very simple and convenient.
We always take customers’ any possible needs into consideration, there’s cigar-lights on each machine.
We equipped window hook for the closed cabin so that the window can be opened a bit and offer better ventilation
Usage
The compact size and the telescopic boon widely increase its usage.
Front and optional rear hydraulic output together with the quick coupling system makes it the transformers of machinery.
With all the above features, our loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.
All the above features are standard on our machine, you do not need to pay extra money for any of them.
II. Specification:
| Model | MY620 |
| Max. length | 2195 mm |
| Max. width | 980 mm |
| Max. height | 2320 mm |
| Max. reach(boom extended) | 3000mm |
| Max. reach(boom retracted) | 2480mm |
| Bucket capacity | 300L |
| Rated loading capacity | 500kg |
| Tipping load | 800kg |
| Min. turning radius | 1980mm |
| Turning angle | 400 |
| Speed | 10 km/h |
| Weight | 1100 kg |
| Standard tire | 23X8.5-12 |
| Tire pressure | 2.8 bar |
| Oil tank capacity | 35L |
| Pressure | 190bar |
| Working oil flow | 16.5L/min x 2 |
| Tracking oil flow | 50L/min |
| Oil model(mineral oil) | L-HL46 |
| Engine brand | Yanmar |
| Number of cylinder | 3 |
| Cooling system | Water cooling |
| Rated power | 18.7Kw |
| Rotation speed | 3000 r/min |
| Fuel tank capacity | 18L |
| Battery capacity | 55Ah |
| Voltage | 12v |
| OPPTIONS | |
| Standard Bucket | |
| Counterweight | |
| Collapsible Roll Bar | |
| Trailer hook | |

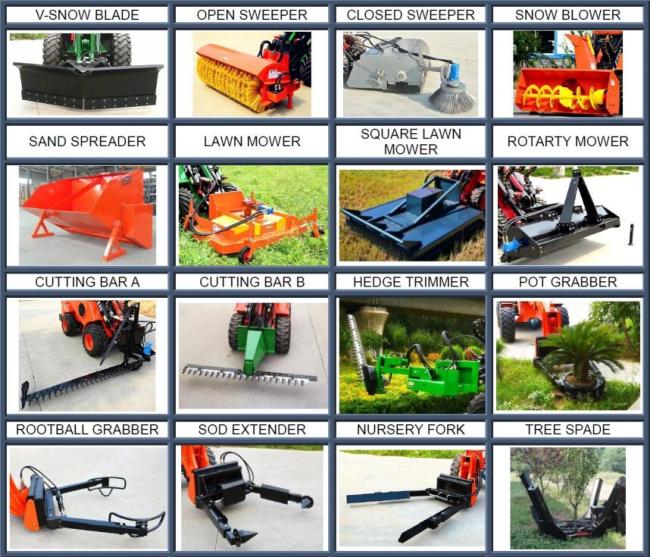

III.Attachment:
loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.


III.Application:
IV.Services:
1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.
6.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
7.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
8.The repairation or replacement for the parts should not exceed the warranty period.
9.The warranty is valid on the condition of all the terms listed in the contract was observed.
