223kW 1500Rpm 4.5m³ 8000kg Heavy Duty Wheel Loader

223kW Cummins Engine QSM11 4.5m³ 8000kg MC886H Heavy Duty Rubber Wheel Loader Frond End Wheel Loader heavy duty rubber

I.Product-Features:

1.Z-bar linkage with large transmission ratio uses high pressure hydraulics for increased breakout force.

2.Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.

3.Fully-sealing and micro-pressuring system ensures the cab is clean and quiet. Silicone oil shock absorber reduces vibration and improves ride comfort.

4.Improved ergonomics for cab design with all control switches in easy reach of the operator.

II. Specifications:

A Maximum hinge pin height 4,552 mm

B Dump clearance at full height discharge 3,300 mm

C Dump reach at full height discharge 1,385 mm

D Maximum digging depth, bucket level 100 mm

S1 Bucket rollback at ground level 45°

S2 Bucket rollback at carry 49°

S3 Bucket rollback at maximum height 61°

S4 Maximum dump angle at full height 45°

E Ground clearance 485 mm

G Wheelbase 3,550 mm

H Cab height 3,580 mm

J Wheel tread 2,270 mm

K Width over tires 2,970 mm

L Length with bucket down 9,300 mm

M Turn angle, either side 38°

P Rear angle of departure 26°

R 1 Turning radius, bucket carry 7,550 mm

R 2 Turning radius, outside of tire 6,625 mm

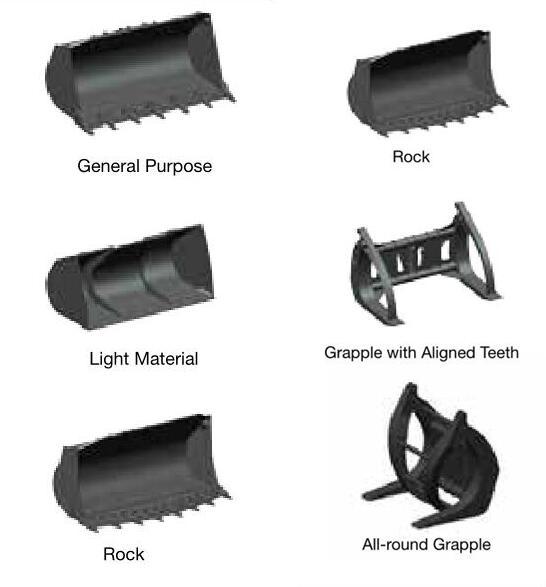

IV.Attachment:

MCLLROY attachments with pin-on or quick-coupler ensure high quality. The integrated design of the system creates a perfect match to achieve
superior productivity.

V.DAILY CHECKS AND MAINTENANCE SHOULDN’T BE TOUGH
Maintenance speed and access is further improved with sturdy handrails, fitted as standard, which enable safe and easy access to the upper structure.
An automatic greasing system improves bearing life and reduces repairs by delivering regular and precise amounts of grease to each bearing.

EASILY ACCESSIBLE SERVICE POINTS MAkE DAILY CHECkS FAST AND EFFECTIVE
• Easily visible hydraulic oil level gauge
• Ground accessible, grouped filters
• Easy to reach electronic control box
• Easy to replace A/C filter next to the cab door

Simple daily checks and maintenance prolong machine performance but, they can be difficult and time consuming on tough jobsites where time is precious. not with the our h series wheel loaders.

The electrically actuated, wide opening fiberglass hood gives fast and easy access to the engine and regular service points – that’s good news

for operators who want to reduce maintenance time to the minimum
