Blue 58kw 3 Ton YN490 1.0 CbM Mini Wheel Loader
58kw YN490 Supercharged Dimension 5700 x1850 x2650 mm Bucket Capacity 1.0 cbM Mini Wheel Loader Front End Loader
I. MCLLROY introduction:
Mcllroy's motto left me an impression: with the same quality, our pric is the lowest, at the same price, our quality will be the best.
We wish to give customers a reference or a purchase guide to avoid being cheated.
We closely match the needs of customers with our specialty, balance the price and give customers the best quality product possible.
Our company believes with our professionalism, quality, price and service ,we will achieve a win-win cooperation.
58kw YN490 Supercharged Dimension 5700 x1850 x2650 mm Bucket Capacity 1.0 cbM Mini Wheel Loader Front End Loader
II. Specification:
|
Overall Performance
|
Rated Load
|
1600 kg
|
|
Operating Weight
|
3800 kg
|
|
|
Bucket Capacity
|
0.8 m3
|
|
|
Bucket Width
|
1900 mm
|
|
|
Dumping Height
|
3200 mm
|
|
|
Dumping Reach
|
900 mm
|
|
|
Max. Gradeablity
|
30%
|
|
|
Dimensions
|
Wheelbase
|
2200 mm
|
|
Tread
|
1530 mm
|
|
|
Mini. Turning Radius
|
4000 mm
|
|
|
Mini. Ground Clearance
|
300 mm
|
|
|
Overall Size
|
5700 x1850 x2650 mm
|
|
|
Engine Equipped
|
Brand
|
YUNNEI
|
|
Model
|
YN27GBZ
|
|
|
Rated Power /Speed
|
58 kW /2400 r/min
|
|
|
Max.Torque
|
230 N.m
|
|
|
Bore x Stroke
|
90 mm x105 mm
|
|
|
Displacement
|
2.7 L
|
|
|
Type
|
4-Cylinder,In-line,Turbo-charged,Water-cooled
|
|
|
Engine Optional
|
CHANGFA (490)
|
55 kW
|
|
CUMMINS(4BT3.9-C80)
|
60 kW
|
IV.Advantages:

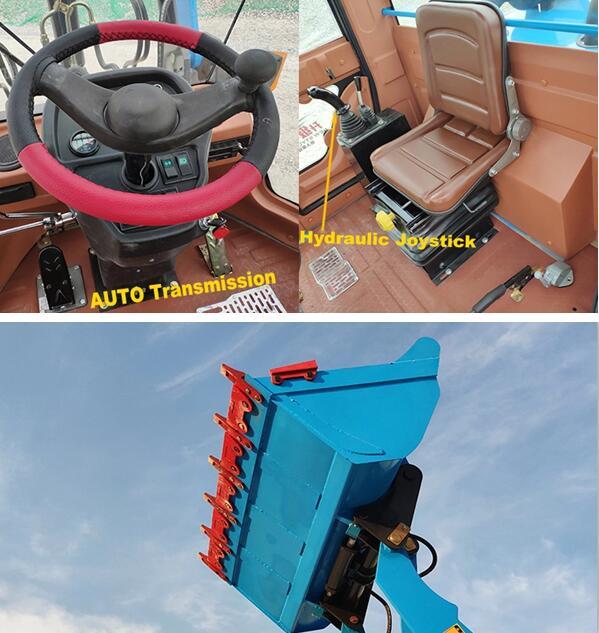

1.Deluxe Driver's Cab with Automatic Transmission and Hydraulic Joystick System Inside
2.Wide Front Bucket fitted with Quick Hitch
The Inner width of bucket of this Loader is 1800 mm and it is equipped with quick hitch, which could enable our loader change other attachments such as pallet fork,wood fork and grass fork etc easily.

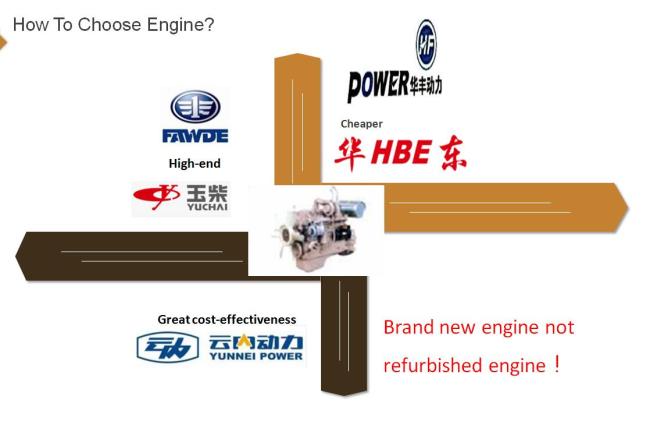

3.Brandnew Engine
The loader sold by our company has a completely new engine and we will send our customer ten engines
if we put an refurbished engine in our loader without our customers knowing.
We also welcome the supervision and feedback of the users.

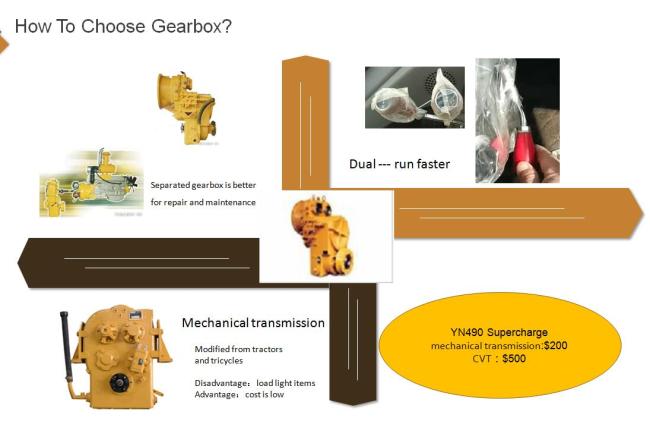

4.The advantages of Separated Gearbox are quite many.
1) It is convenient to repair and maintain, and has better heat dissipation.
2)The working efficiency of the Separated Gearbox is higher, because the torque of the Separated type is greater,
it can maximize the output power of the engine.
