750mm 15rpm 6 Ton Multifunction Telescopic Excavator
9.6KN Digging Force Wheel Base 750mm Excavator Manufacturer 6 ton Bucket 0.04m3 Mini Wheel Excavator
I.Production Description:
1.The complete machine is configured with standard high-power air-conditioning system, standby power, magazine bags and storage boxes, etc. in accordance with a humanized design.
2.The optional rubber tracks, steel tracks, quartering hammers, quick changers and other auxiliary equipment have significantly improved its capacity for dealing with all kinds of working conditions.
3. The MJG75S wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements.
4. As a model featuring sufficient flexibility, high fuel efficiency and operation reliability in accordance with the North America and Euro-III emission standards,
5.MJG75S plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.
II.Specifications:
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maximum Digging Reach | 6400mm | |||||||||
| Maximum Digging Depth | 3300mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6870mm | |||||||||
| Maximum Dumping Height | 4860mm | |||||||||
| Back-end radius of gyration | 1820mm(gear pump)/ 1980mm(piston pump) |
|||||||||
| DIMENSION | (Length*width*height) travel position | 5800*2100*2850mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1660mm/1580mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 6000kg | |||||||||
| Engine model | Yunnei/Yuchai | |||||||||
| Rated Power | 58.8KW/50KW/48KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 110L/min | |||||||||
| Metering gear pump | 2*25ml/r(gear pump) | |||||||||
| Variable piston pump | 2*28ml/r(piston pump) | |||||||||
| Max Hauling force | 45KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 7.50-16 | |||||||||
| Volume Of Bucket | 0.2-0.3m3 | |||||||||
III.Optional Attachments:
Electro magnet chuck,orange peel graple ,hammer,earth auger,material leveler,scrap grapple,log grapple,cotton grapple,clamshell grapple,Stone grapple,trencher,screening bucket,ballast cleaner,hydraulic shear, fork, iron scap grapple,
cotton grapple,breaker .

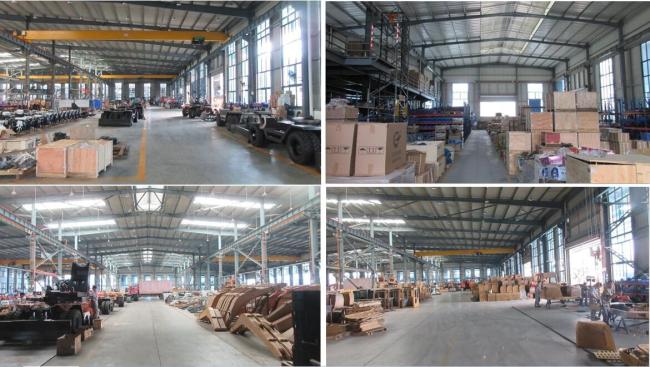

IV.Workshop Display:
