Chair Front Rear Stability Testing Machine With Standard ANSI / BIFMA X5.1
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
8 workdays
Brand:
TONY
Product Description

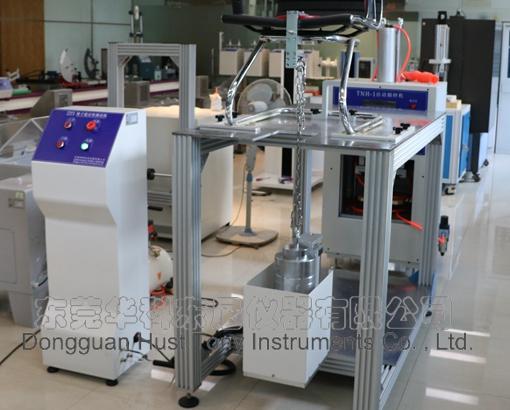

Bifma X5.1 Chair Front Rear Stability Testing Machine
TNJ-023 Chair Seats Front Stability Test Machine
Introduction of product:
This machine is suitable to test the seats (such as chairs, office chairs) front stability.

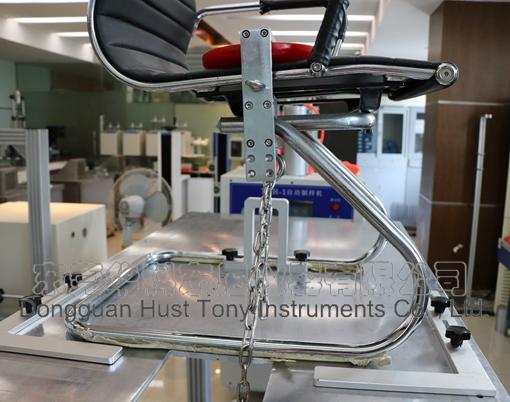

Principle: Put the test-piece on the test table, blocked the front leg, apply specified force with forward 20N applied at seat loading point, check the article tends to overturn forward or not to determine the test-piece forward stability performance.
Technical parameters of Bifma X5.1 Chair Front Rear Stability Testing Machine:
| Seat surface loading: | Max: 600N, cumulative |
| Tensile force: | 20N |
| Loading point position: | seat surface center position,60mm from front edge |
| Seat surface loading pad: | diameter: 200mm, |
| camber surface: | R300mm,9 pins |
| Loading rob: | 19mm, both ends A type: sphere SR19mm B type: sharp surface 45 ° |
| Weights basket lifting: | manual control |
| Dimensions (WxDxH): | 100x140x105cm |
| Weight: | 500kg |
| Air source: | 6kgf/cm2 stable air source |
| Standards: | ANSI/BIFMA X5.1-12.4 Front Stability;EN 1022, EN 1729-2 |
