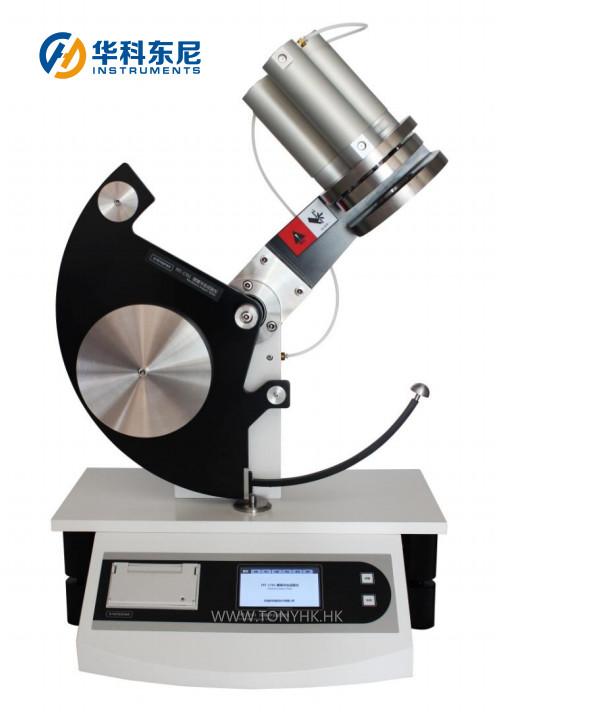

Film Impact Tester Pendulum Impact Testing Machine Meet ASTM D3420
Price:
contact saler
MOQ:
1 set
Delivery Time:
15 working days
Brand:
HUST Tony
Product Description
Application :Pendulum Impact Tester is professionally applicable to the determination of resistance to impact-puncture penetration of films, textile , composite films, aluminum foils and other materials.
Technical indexes
- Impact capacity: 1J, 2J, 3J, 5J (optional)
- Resolution: 0.001J
- Impact head size: Ф25.4mm, Ф19mm, Ф12.7mm (Customized available)
- Specimen holder size : Ф89mm, Ф60mm
- Specimen size: 100 mm x 100 mm, Ф100mm
- Gas resource pressure: 0.3MPa - 1.0MPa
- Gas resource interface: Ф6mm
- Instrument dimension: 492mm(L) × 383mm(B) × 752mm(H)
- Power supply: AC 220V 50Hz
- Net weight: 44kg
Standard
GB 8809-88,ASTM D3420,NF T54-116
Features
1. TFT screen display results
2. Specimen pneumatic clamp
3. Pendulum pneumatic lock and release
4. Pendulum capacity easy to change
5. Statistic calculation: max, min, mean and standard deviation
6. Micro-printer prints mini-report
7. RS-232 standard communication port.
accessories:
mainframe, 1J pendulum, 2J capacity poise, 3J capacity poise, Ф25.4mm impact head, Ф19mm impact head, sample holder, micro-printer.
Optional parts: Professional software, non-standard impact head, O-rings.
