Sand Stone Coated Sheet Metal Roll Forming Machines , Steel Roof Tile Production Line
Sand Stone Coated Sheet Metal Roll Forming Machines , Steel Roof Tile Production Line
PLC Control System
- Control the quantity & cutting length automatically;
- Combined with: PLC, Touch Screen (SIEMENS), Inverter (SCHNEIDER), Encoder (Omron), etc
- Cut-to-length tolerance ≤±2 mm
- Control Voltage 24V
- Product Rack Un-powered, 3 units
Sand stone coated roof tile cold Rolling Machines

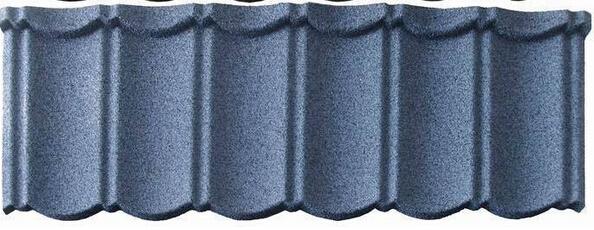

Color Stone coated steel roof tile sheet is formed by 0.4mm Al-Zn, Galvalume, Galvanized plating panel and color stones. It is modern,environmental and nice appearance. colorful coated metal roof tile is a new advanced roof material which adopt the high and new technology, use the non-corrosibility al-zin steel as the basic plate,use the acrylic resin which has the good weather resistance as the adhesives,use the colorful natural sandy gravel as the surface.Because of its nice appearance,lightweight,durable and environmental,it is becoming the major product in the international roof materials in recent years, and it is also used in the high-grade building in domestic,it is enjoying a great popularity all over the world.
Machine composition
| Steel Roof Tile Molding Machine | 1 Unit |
| Automatic Bottom Glue Spraying Device | 1 Unit |
| Automatic Sandblasting Ropm | 1 Unit |
| First Drying Room | 1 Unit |
| Automatic Surface Glue Sapraying Device | 1 Unit |
| Second Drying Room Equipment | 1 Unit |
| Runout Table | 1 Unit |
Hydraulic Cutting Device
- Stop to cut, Post cut, No Blanking cut
- Pump motor =4.0KW
- Cutting tool material : Cr12, Heat treatment;
Packaging & Delivery
| Packaging Details | 40HC'*1 |
|---|---|
| Delivery Detail | 45 DAYS |

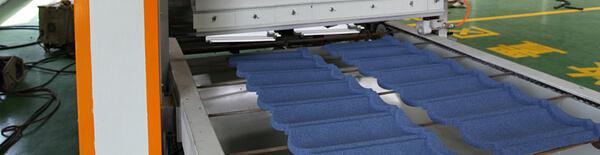

Machine Shows
