Blue Color High Strength Metal Deck Roll Forming Machine Big Wave Length
Price:
Negotiation
MOQ:
1 sets
Delivery Time:
40 days after payment
Brand:
Shenghong
Product Description
Blue Color High Strength Metal Deck Roll Forming Machine Big Wave Length
Technical data of Floor Decking Roll Forming Machine
|
Suitable Material |
Q235 color steel sheet;0.7-1.2mm
|
|
|
Working speed
|
About 15m/min
|
|
|
Power Requirement
|
Main motor power: 18.5 Kw(Depend on final design)
|
|
|
Hydraulic station power: 5.5 Kw(Depend on final design)
|
||
|
Material of forming rollers
|
No.45 steel, plated with chrome on surface.
|
|
|
Material of cutter
|
Cr12 mould steel with quench treatment, HRC58-60
|
|
|
Material of shaft
|
High quality 45# steel, Dia. is 72mm.
Roller grinder milling. |
|
|
Shaft diameter
|
82mm
|
|
|
Controlling system
|
Mitsubishi PLC & converter
|
|
|
Total weight of machine
|
About 16500KGS
|
|
|
Machine''s size
|
About 26m×1.8m× 1.5m (Depend on final design)
|
|
|
Shipping
|
1x40GP and 1X20GP containers can load one machine
|
|
Product application: The metal deck produced by floor deck forming machine ia used as decking of building; It has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
Our Metal Roll Forming Machine’s advantages
| 1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome . 2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation. 3. Cutter blade: Cr12 mould steel with quenched treatment, long life time. 4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance. 5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction. 6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines. |
Features
The floor deck panel is forming from GI steel to instead of traditional mould which is more strange, quick construction. It is widely using in many industries.
The floor deck forming line can forms continuously and quickly.
ODM: available
OEM: available
Profile drawing: according to you require
Produce: Decking Sheet Roll Forming Machine

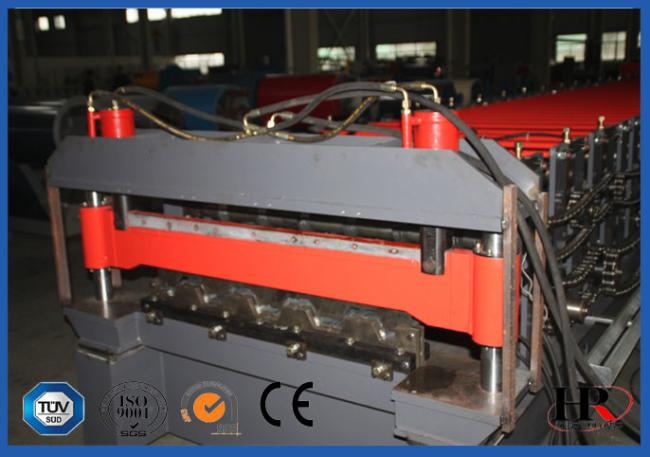

Machinery Photos
