Technical parameters of 2Layer roll forming machine
- Steel thickness: 0.4-0.8mm
- Forming speed: 8-18m/min
- Roller stands: 18 stands bottom layer, 16 stands top layer
- Roller material: 45# steel, coated with chrome
- Main motor power: 5.5kw
- Hydraulic cutting power: 3kw
- Hydraulic pressure: 12Mpa
- Power supply: 380V 50HZ 3 phase
- Tolerance: 1.5mm
- Control system: PLC with touch screen
- Machine net weight: 12T
Description of 2 Layer roll forming machine
The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall & roof sheets, or 1 wall & roof sheet and 1 floor decking sheet. Customer can choose the type. This line consists of uncoiler, cut-off unit, roll forming machine, products stacker and PLC automatic control cabinet.
1.Variable frequency speed control
2.Multi-purpose for overlap connection
3.Auto power off
Layout of double-layer roll forming mill
Typical double layer

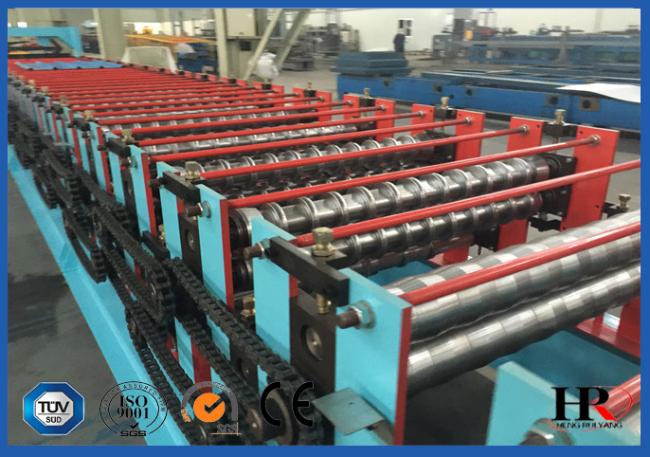

Machinery Photos
