Colored Glaze Steel Roof Roll Forming Machine 13 Rows 15 m / min

Price Negotiable
Price: Negotiation
MOQ: 1 sets
Delivery Time: 40 days after payment
Brand: Shenghong
Product Description

Colored Glaze Steel Roof Roll Forming Machine 13 Rows 15 m / min​

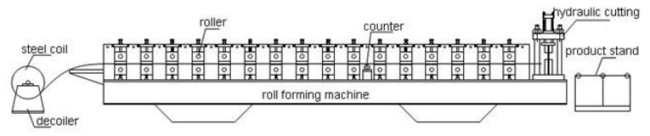

Working Steps




Production Descripition


It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.





Parameters

Forming size

6000mm*1100mm*1100mm

Feeding width

1200mm

Equipment weight

2100kg

Material of shaft

45#steel adjustable treatment

Out diameter of shaft

φ70mm

Material of roller

Cr12, quenched treatment HRC58-60°C

Number of forming rollers

13 rows

Main frame

H steel welding

Thickness of medium plate

14mm

Transportation system

Chain transportation

Thickness of chain

6 points

Main motor power

4 KW

Pump station power

3 KW

Forming speed

8-10 m/min

Rolling thickness

0.3-0.8mm



Related



For More information about steel roof panel profiles, Pls contact with us!
