Carbon Galvanized Sheet Aluminum Metal Roll Forming Machine 20 GP

Packaging & Delivery

Specifications

Warranty 12 months
10 years experience
Delivery time 45-60 days

Main Technical Parameters

1. Plate Material: Q195-Q235, color plate

2. Thickness of the Plate: 0.4mm

3. Width of the Material Plate: 1250mm

4. Inner Diameter of the Material Roll: 508-610mm

5. Outside Diameter of the Material Roll: 1200mm

6. Weight of the Material Roll: 5T

7. Power of Main Generator: 11KW

8. Maximum Width: 1250mm

9. Work Speed: 15m/min

10. Transducer Model No.: American Denvers

11. PLC Controlled the Computer: Mitsubishi

12. Computer's Operation Panel :Xinjie

Components

1. a Decoiler with a coil car

2. Direct Pinch Equipment

3. Portrait Embossing Machine

4. Bump Cutter Machine

5. Recoiler with a coil car

6. Encode Scale Set-up

7. Computer Switch Board

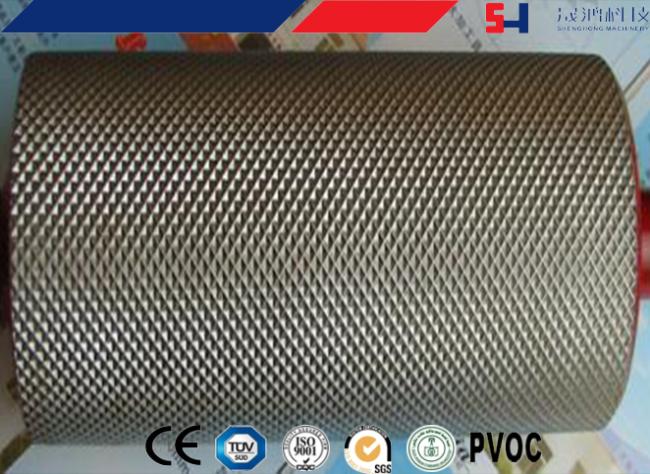

Sample pic:
