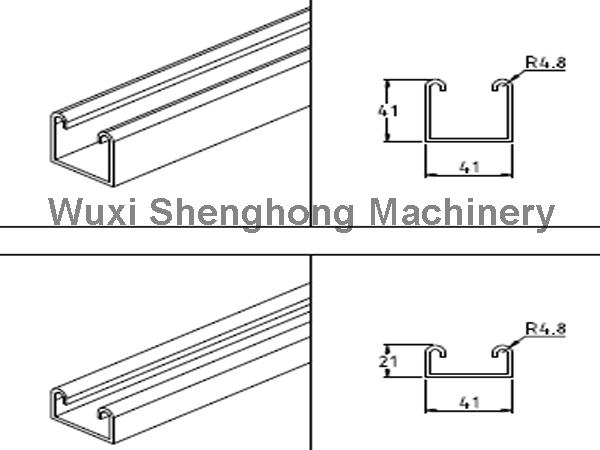

A   Technical parameters

1. Matching material:  Mild steel

2. Material thickness range:1.5-2.5mm

3. Main motor power: 45 KW with JZQ reducer

4. Forming speed: 6-10m/min(include punching and cutting time)

5. Quantity of stands: about 20 stands

6. Shaft Material and diameter: ￠85mm, material is 40CR

8. Material Of The Stations: pig iron

9. Tolerance: 3m+-1.5mm

10. Way Of Drive: Gear box

11. Controlling system: PLC

12. Total weight: about 25 Tons

13. Voltage: 380V/ 3phase/ 50 Hz

14. Material of forming rollers: CR12(better material than GCR15), coated with chromed treatment

15. Cutting:Hydraulic cutting

16. Surface treatment of rollers:mirror polished

B equipment composition

Main parts: 5 tons hydraulic de-coiler, leveling and servo feeding machine, hydraulic punching , material guiding , roll forming machine, hydraulic  cutting, exit rack,finish.

C Work flow

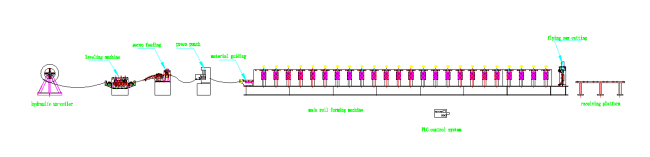

hydraulic De-coiling —electrical leveling—servo feeding—press punching—material guiding—roll forming—length sizing—fly saw cutting—receiving platform— Finish

D Packing List

Hydraulic de-coiler x1 set

Leveling machine(electrical ) x1 set

Main roll forming machine x1 set

Servo feeding machine x1 set

63 Tons Press x1 set

Fly saw cutting system x1 set

PLC Control box x1 set

Servo control box x1 set

Run-out table x2 sets

Punching mould x1set
