Hydraulic Decoiler Standing Seam Roof Sheet Roll Forming Machine 30 M / Min

30m / min working Speed Standing Seam Roof Sheet Roll Forming Machine with hydraulic decoiler

Technical parameters

1. Matching material: GI.PPGI aluminum

2. Material thickness range: 0.2-0.6mm 550Mpa, 0.6-0.8mm 300 Mpa

3. Main motor power: 11 KW motor with cyclonical pin wheel reducer

4. Forming speed: 0-30m/min

5. Hydraulic station power: 5.5 KW

6. Quantity of stands: about 24 stands

7. Shaft Material and diameter: ￠80mm, material is 40CR

8. Material Of The Stations: Guide rail style

9. Tolerance: 3m+-0.5mm

10.Way Of Drive: chain

11. Controlling system: PLC

12. Total weight: about 12 Tons

13. Voltage: 380V/ 3phase/ 50 Hz

14. Size of the machine: L*W*H 14 m*2.0m*1.4m

15. Material of forming rollers: 45# steel , coated with chromed treatment

16. Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

17. The rollers surface is mirror polished.

18. Spacer treatment: spacers are plated

Working flow:

Brief introduction

a. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

b. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

d. It is very easy to install the equipment and suitable for producing in the factory.

e. The machine has features of low noise and high efficiency.

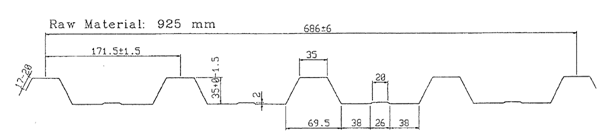

Profile drawing

Main components brand

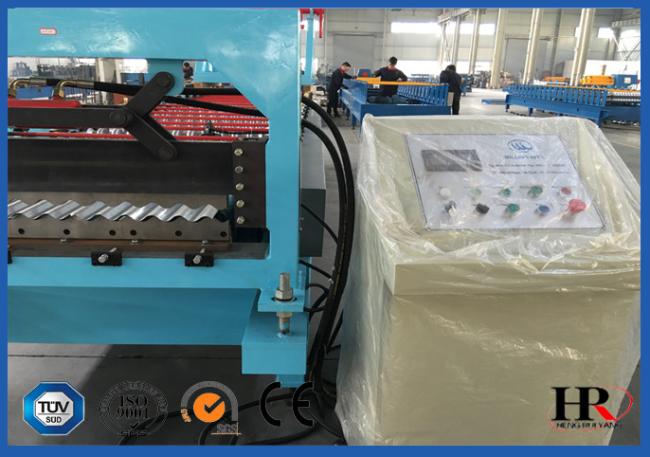

Machine Show
