Door Frame Making Machine , Galvanized Steel Sheet Roll Forming Machine
Galvanized Steel Sheet Roll Forming Machine Door Frames Rolling Forming Machine
Basic informaion of Security steel door forming machine:
1.The stSecurity steel door forming machine are stable,no noise,no shake.
2.Controlling by computer, PLC display, operation is easy, running is steady andreliable,endurable.
3.cutting machine is characterized by stable driving, easy operation.
4.hydraulic system use the hydraulic pump, long operating life,no noise.
Application
Our factory specializes in making door system machines since 2010. Now, we can manfacture almost every part of the shutter door, like Security steel door forming machine,roller shutter guide rail machine, bottom lath machine,roller shutter slats roll forming machine and so on
Working flow :

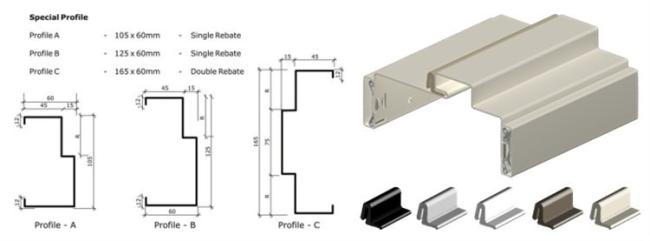

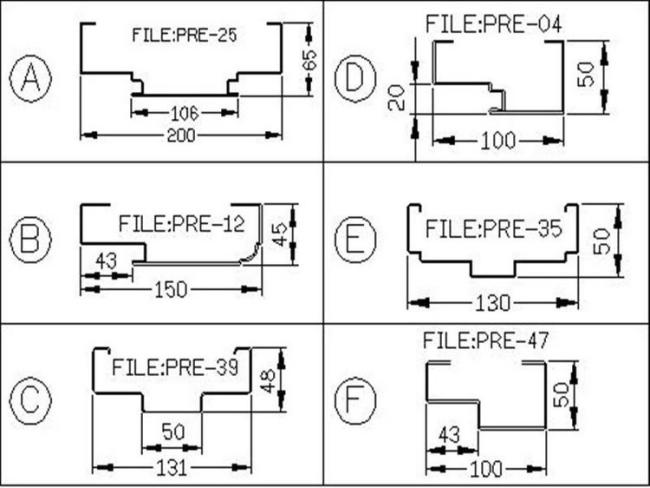

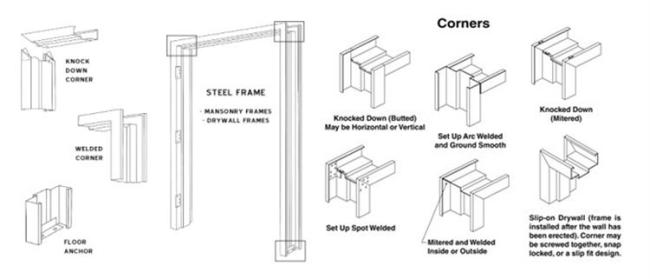

Some drawings:
Basic Information of Security steel door forming machine
| name | Security steel door forming machine |
| Processing material | colored steel, galvanized sheet, or aluminium plate |
| Material thickness | 0.8-1.5 mm |
| Material hardness | 550 mpa---350 mpa |
| Material width | 200mm(according to the profile) |
| Formed width | 101.6mm (according to the profile) |
| Forming speed | 12m/min |
| Working speed | 8m/min |
| Voltage | 380V 50HZ 3Phase |
| Roller fixer | Guide column |
| Frame | 400 H steel |
| Drive mode | chain |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel with tempering |
| Diameter of shafts | φ70mm |
| Number of rollers | 20 rollers |
| Main power | 5.5kw |
| Hydraulic power | 3kw |

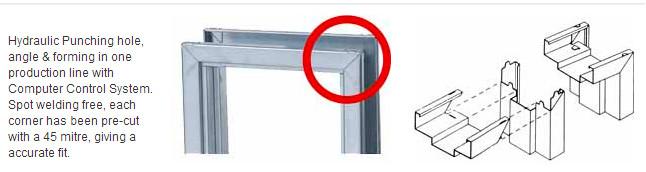

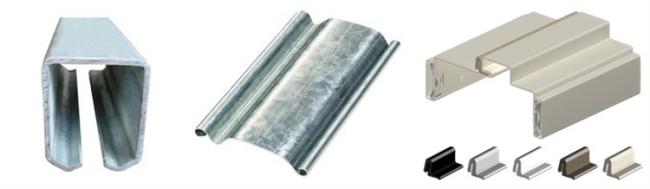

Some details of Security steel door forming machine:

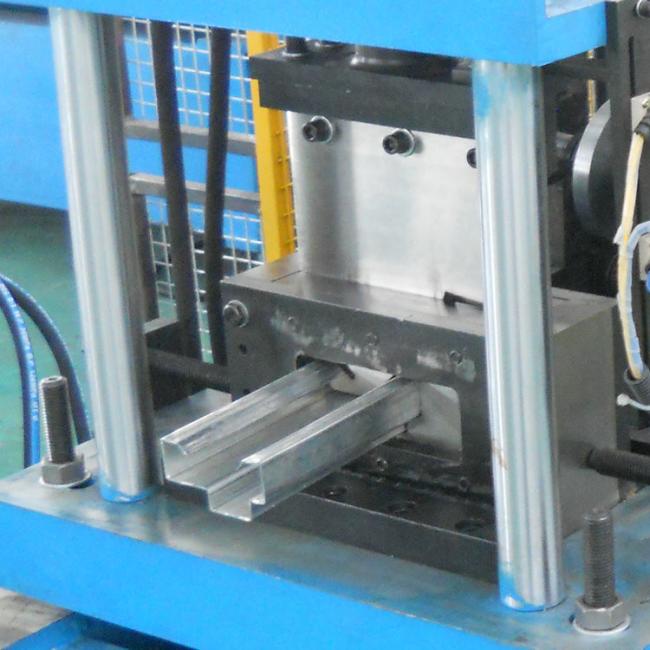

Machinery photos:
