Light Duty HOWO 4X2 Dump Truck 6 Wheels 116HP

Price Negotiable
Price: Negotiation
MOQ: 1Unit
Delivery Time: 10-30 working days
Brand: SINOTRUK
Product Description

New HOWO 4 X 2 Dump Truck 6 Wheels Light Duty 116HP



HOWO 4X2 Light Duty 116HP Dump Truck



Description:



Sinotruk 4x2 Dump Truck: It is more suitable for short- and medium-distance road transportation. It mainly transports goods such as sand, coal, iron powder, cement, stone, etc. The load capacity is suitable for small tonnage and generally can reach 10-15 tons.


The dump truck is hydraulically lifted, and the lifting methods are divided into two types: middle lift and forward lift. Use middle lift: cylinder stroke is small, cost is low, mechanism height is large, and center of gravity is high. Can be equipped with low bumpers, high bumpers, military bumpers, etc.







Specification:



HOWO 4X2 Light Duty 116HP Dump Truck
Model ZZ1107D3815C1R
Drive Type 4×2
Engine
YN4102QBZL 4102, 116HP( Euro III)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L

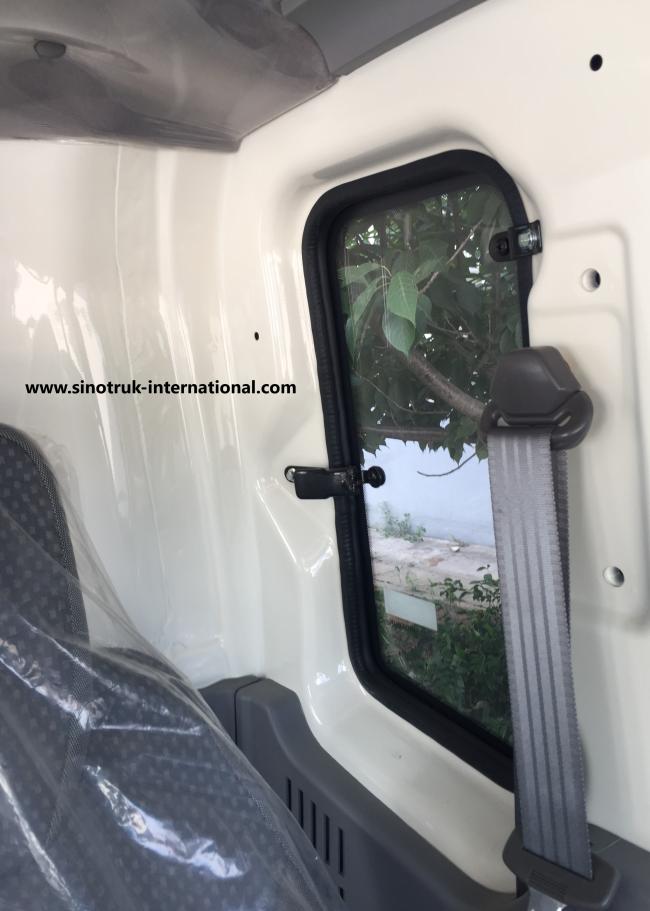

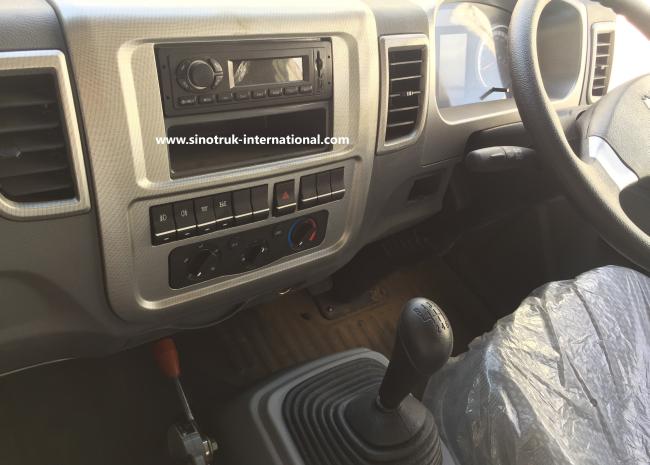

Cabin 2080, single and half row, with one berth,with A/C
Transmission WLY646,(6 forwards & 1 reverses)
Front Axle 2.7Tons
Driving Axle 7.2Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 15/75R17.5 tubeless—plus one spare tyre
Wheel base 3800(mm)
Overall dimension 7005*2450*2750 mm
Cargo body 4200*2200*1200mm,Bottom:4mm, Side:3mm
The curb weight 4670(Kg)
Gross weight 8890 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1)all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
2)using the high strength steel, make it has a long service life
3)The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)excellant apperance of cabin, safety, reliable
5)low fuel consumption
6) strong enough engine
7)with all kinds of truck model, which can fulfil your requirements
8)the key parts adopt the world's top technology products
9)based on strong technical support and top level technology make the trucks with high quality and more reliable
10)competive price, cost-effective
11)quick and efficient spare parts supply bring you more convenient
12)fast delivery time, we can arange production according to your needs exactly and quickly

13) professional import and export dealing precedure, make customs clearance more high efficiency
