Durability SC80.8 8 Ton Excavator Rental Mounted With 0.34m3 Bucket

Price Negotiable
Price: negotiation
MOQ: 1 unit
Delivery Time: 10 working days after received L/C or your deposit
Brand: Visbull
Product Description

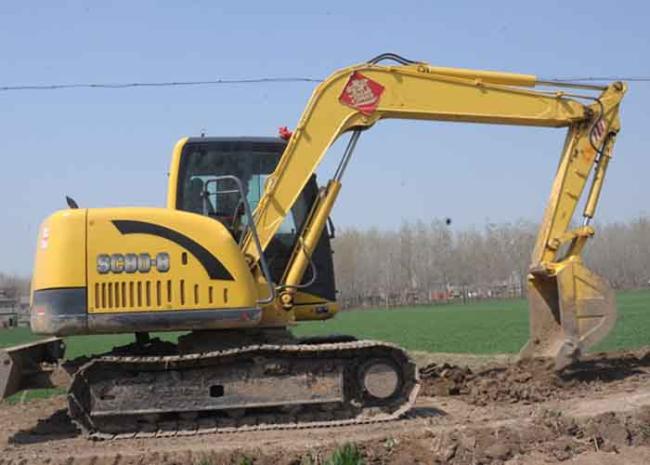

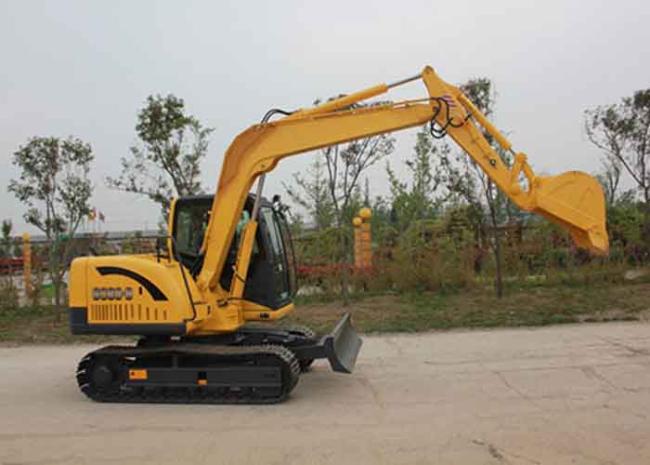

Durability SC80.8 8 Ton Excavator Rental Mounted With 0.34m3 Bucket



1.Main Features

The 8t excavator adopts the most advanced Toshiba hydraulic system, which can adjust the output flow of the main pump according to the load and match with the engine output power. The system can provide the maximal output flow to improve the work efficiency during heavy duty operation, and it will control the pump output flow by the negative flow during fining operation, which improves fuel economy.
The cab, armrest box and air conditioner are completely upgraded, bringing new operation experience. It features strong power, advanced technologies, EuroⅡemission standards, and high work efficiency. The well-designed high strength chassis and reinforced working devices has excellent performance especially under heavy load work conditions, which ensures the durability and reliability of the machine. It is also mounted with 0.34m3 bucket, which effectively improves the work efficiency.



2.General Technical Parameters

Basic Specifications
Operating Weight 7800 kg
Standard Bucket Capacity 0.34 m3
Boom Length 3710 mm
Arm Length 1650 mm



Engine
Engine Model CUMMINS B3.3
Engine Rated Power/Speed 45 kW/2200 rpm



Hydraulic System
Main Pump Type Variable displacement piston axial pump PVC90
Max. Flow 154 L/min
Working Pressure 27.5 MPa



Performance
Travel Speed 5.1 /2.7 km/h
Swing Speed 10 rpm
Gradeability 35 degrees /70%
Bucket Digging Force-Maximum 52.7 kN
Average Ground Pressure 30 kPa
Fuel Tank Capacity 130 L
Hydraulic Oil Tank Capacity 56 L



Working Ranges
Max. Digging Reach 6330 mm
Max. Digging Reach at Ground 6180 mm
Max. Digging Depth 4038 mm
Max. Vertical Digging Depth 3505 mm
Max, Digging Height 7165 mm
Max. Dumping Height 5068 mm



Overall Dimensions
Overall Height (To Top Of Boom) 2515 mm
Overall Height (To Top Of Cab) 2680 mm
Overall Length 6100 mm
Overall Width 2300 mm
Tail Swing Radius 1755 mm
Track Gauge 1700 mm
Track Width 2150 mm
Track Shoe Width 450 mm
Turnable Width 2198 mm
Min. Ground Clearance 382 mm
