120 KW Crawler Bulldozer , Dozer Vehicle With 1095 Mm Blade Lift Height
Price:
negotiation
MOQ:
1 unit
Delivery Time:
30 working days after received L/C or your deposit
Brand:
Visbull
Product Description
1. Introduction:

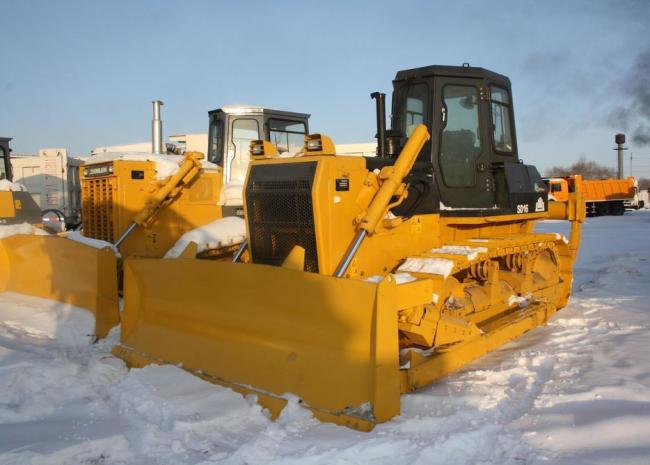

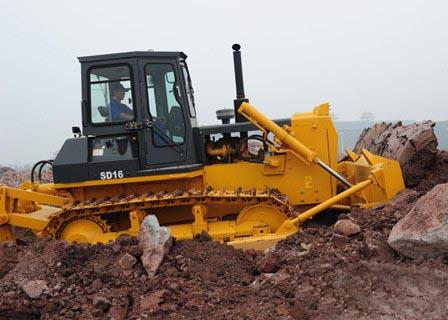

Bulldozer SD16 Crawler Bulldozer is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.
2. Technical specification:
| ITEM | UNIT | SD16 Bulldozer |
| L*W*H (Ripper not included) | mm | 5140*3388*3032 |
| Operating weight (Ripper not included) | t | 17 |
| Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
| Rated power | kW/rpm | 120/1850 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade U blade Angle blade |
| Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
| Dozing capacity | m3 | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1095 |
| Ripper type | - | Three-shank ripper |
| Ripping depth of ripper | mm | 572 |
| Lifting height of ripper | mm | 592 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 37 |
| Width of track shoe | mm | 510 |
| Track gauge | mm | 1880 |
| Ground length and ground pressure | mm/MPa | 2430-0.067 |
| Pitch | mm | 203.2 |
| Forward speed | km/h | 0–3.29 |
| 0–5.82 | ||
| 0–9.63 | ||
| Reverse speed | km/h | 0–4.28 |
| 0–7.59 | ||
| 0–12.53 |
