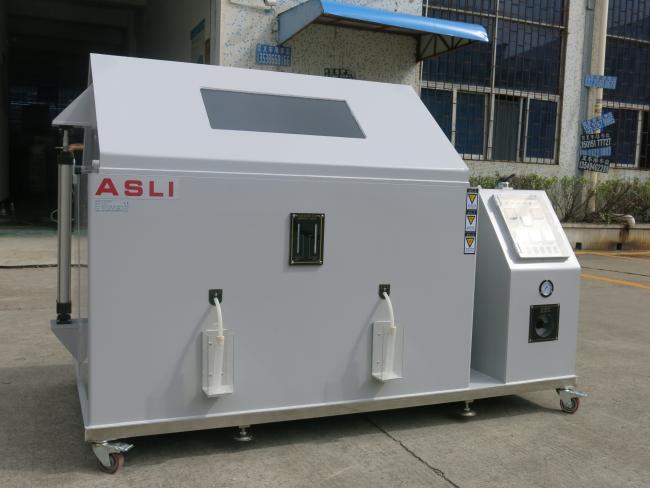

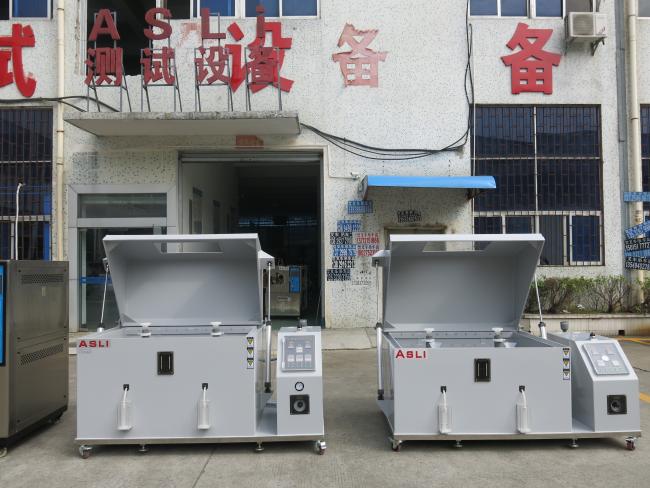

Corrosion Salt Spray Test Chamber for NSS CASS Test, Salt Spray Test Machine Price

1.Application:

SH-60 Salt Spray Test Chamber is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating,
anti-rusting oil and other anti-erosion treatment.

2.Technical Parameters:

3.Constant temperature control settable :

(A)Salt Spray Test: NSS, ,ACSS
1.testing zone temperature : 35 ℃ (+/- )1 ℃
2.Saturated air barrels temperature : 47 ℃ (+/- )1 ℃
(B)Corrission resistance test:
1.Laboratory: 50 ℃ (+/- )2 ℃
2.Saturated air barrels: 63 ℃ (+/- )2 ℃


4. Air supply system:

1.Air pressure is 1 kg/cm 2 , divided into two sections adjustment
2.First step is rough adjustment : 2 kg/cm 2 imported type air filter with drainage function, the second step is
precision adjustment : 1 g/cm2 Pressure gauge

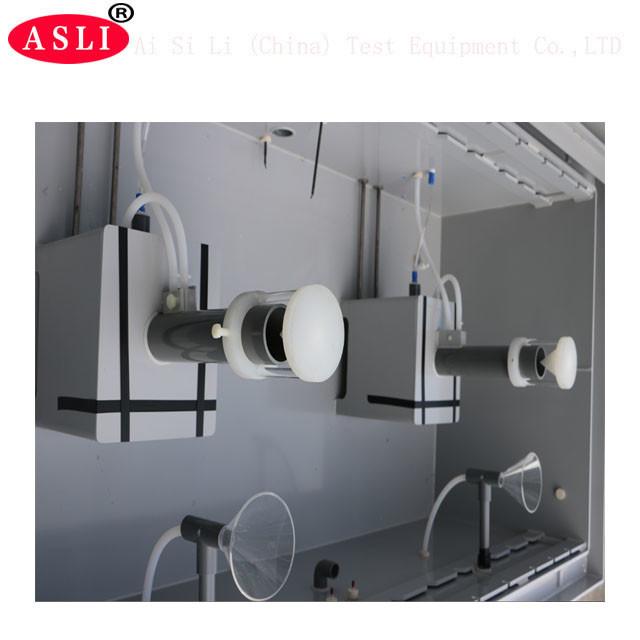

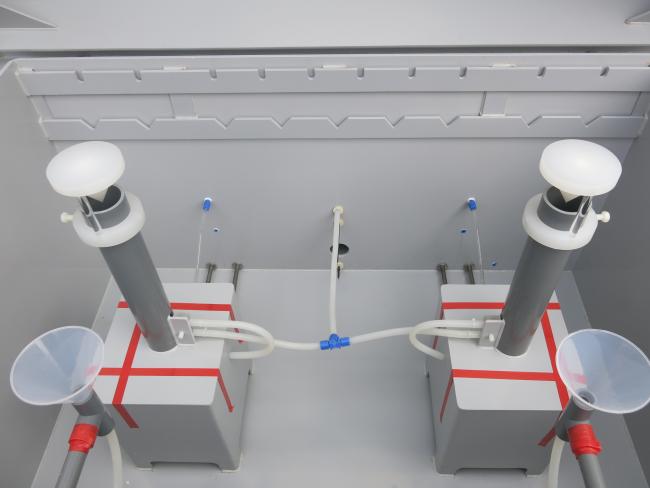

5.Spray fog method:

1.Adopt Knut principle to absorb brine to atomization, uniform atomization degree, to ensure continuous
testing standard.
2.Fog Spray quantity: adjustable type 1-2ml(ml/80cm2/h) (average quantity of 16 hours)
3.Spray method: programmable spraying.



6.Heating system:

Adopting the direct heating mode, fast heating, reduce the standby time, when the temperature reaches ,the
ON/OFF switch shift automatically,temperature precision, less power consumption.

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Short introduction about ASLi factory:

We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.HAST Un-Saturated Steam Chamber is our star products, and we had obtained the CE certification for this machine.

Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
