JH640-690 MWIR MCT Cooled Long Range Thermal Security Camera

Price Negotiable

Price: negotiable

MOQ: 1set

Delivery Time: negotiable

Brand: JOHO

Product Description

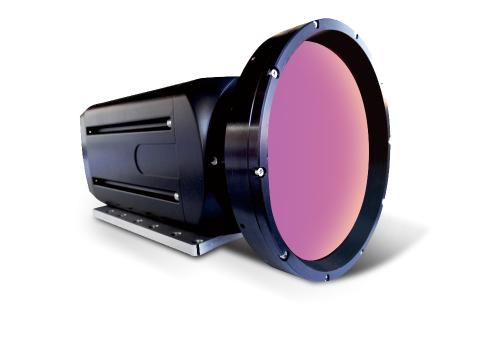

JH640-690 MWIR MCT Cooled Long Range Thermal Security Camera

JH640-690 Thermal Security Camera is equipped with a high resolution 640x512 pixel MWIR Cooled FPA and 34mm~690mm continuous zoom lens which effectively distinguish targets such as long range human, vehicle and ship.

Technical Specification

Model	JH640-690
Detector	Cooled FPA MCT
Resolution	640×512, 15μm
Spectral band	3.7~4.8μm
NETD	18mk@25℃
Cooling	Stirling cooler
Lens
Focus length	34mm~690mm continuous zoom
F number	4
FOV	0.80° (H)×0.64° (V)~ 15.9° (H)×12.7° (V)
Function and Interface
Auto focus	Yes
Lens compensation	Yes
Frame frequency (digital video)	50Hz (100Hz is able to be customized)
Analog video	PAL
Digital video	LVDS
Communication control	RS232/RS422 on request
Shutter calibration	Manual/auto
Background calibration	Yes
Polarity setting	BH/WH
Electronic zoom	×2, ×4
Reticle Display	ON/OFF
Reticle Position	Adjustable
Image Gain	Adjustable
Image Brightness	Adjustable
Image enhancement	Adjustable
Image reverse	Vertical/ horizontal
Power specification
Power supply	DC24~36V
Power consumption	≤10W@25℃
Environmental specification
Operation temperature	-32℃~+60℃
Storage temperature	-40℃~+70℃
Vibration test	GJB150.16-86/MIL-STD-810F-514.5
Shock test	GJB 150.18-96 /MIL-STD-810F-516.4
High temperature test	GJB150.3-86/MIL-STD-810F-501.4
Low temperature test	GJB150.4-86/MIL-STD-810F-502.4
Physical Specification
Weight	≤9.4kg

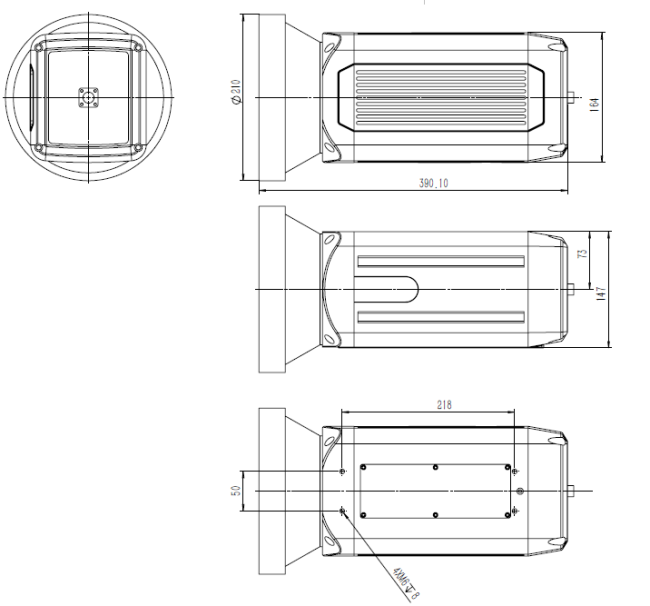

Dimension	400mm×220mm×220mm
