2S160-15 Stainless Steel Electirc Solenoid Valve For Water Air Oil
2S160-15 Stainless Steel Electirc Solenoid Valve For Water Air Oil
PRODUCT DESCRIPTION:
1. SUW series is direct, multiplex, connected diaphragm, conductive and normally closed (NC) 2/2 way solenoid valve;
2. Orifice size from 2.5 to 50mm, and port size from 1/8'' to 2'';
3. The pipe connection could be G, NPT, BSP, PT;
4. Able to be operated directly under low pressure;
5. Availability of fluid type:water, air, light oil, gas, vacuum;
6. Acceptable for customization Viton (130℃) , Silicone (130℃) and EPDM (130℃) for plug and diaphragm.
Youtube video of 1/2'' 2S160-15 SUW-15 UNID Type Solenoid Diaphragm Valve:

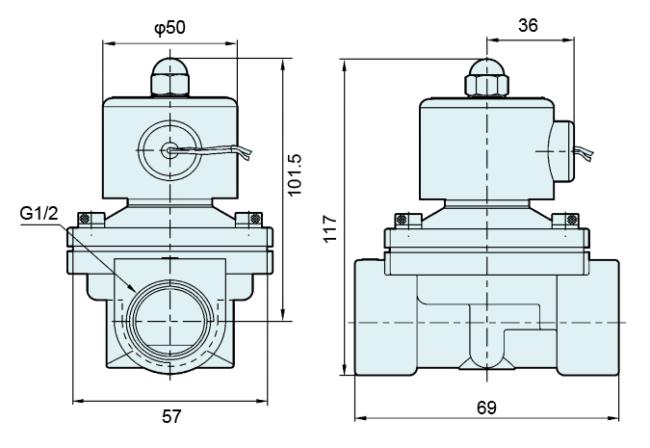

Main dimension of G1/2'' 2S160-15 Semi-direct Diaphragm Operated Solenoid Valve:
Technical parameters of SUS & SUW NBR Diaphragm Unid Type Solenoid Valve:
| 2S Series | Uni-D Type | PIPE SIZE | CV | ORIFICE | FLUID TEMP. (°C) | Operating Pressure kgf/ cm2 (bar) | ||
| Water | Air | Light oil | ||||||
| 2S025-06 | SUS-6 | 1/8'' | 0.23 | 2.5mm | -5°C- +80°C | 0-7 | 0-7 | 0-7 |
| 2S025-08 | SUS-8 | 1/4'' | 0.23 | 2.5mm | -5°C- +80°C | 0-7 | 0-7 | 0-7 |
| 2S040-10 | SUS-10 | 3/8'' | 0.58 | 4mm | -5°C- +80°C | 0-7 | 0-7 | 0-7 |
| 2S160-10 | SUW-10 | 3/8" | 4.5 | 15mm | -5°C- +80°C | 0-5 | 0-7 | 0-5 |
| 2S160-15 | SUW-15 | 1/2'' | 4.5 | 15mm | -5°C - +80°C | 0-5 | 0-7 | 0-5 |
| 2S200-20 | SUW-20 | 3/4" | 8.6 | 20mm | -5°C- +80°C | 0-5 | 0-7 | 0-5 |
| 2S250-25 | SUW-25 | 1" | 12 | 25mm | -5°C- +80°C | 0-5 | 0-7 | 0-5 |
| 2S350-35 | SUW-35 | 1-1/4" | 24 | 35mm | -5°C- +80°C | 0-5 | 0-7 | 0-5 |
| 2S400-40 | SUW-40 | 1-1/2" | 28 | 40mm | -5°C - +80°C | 0-5 | 0-7 | 0-5 |
| 2S500-50 | SUW-50 | 2" | 48 | 50mm | -5°C - +80°C | 0-5 | 0-7 | 0-5 |

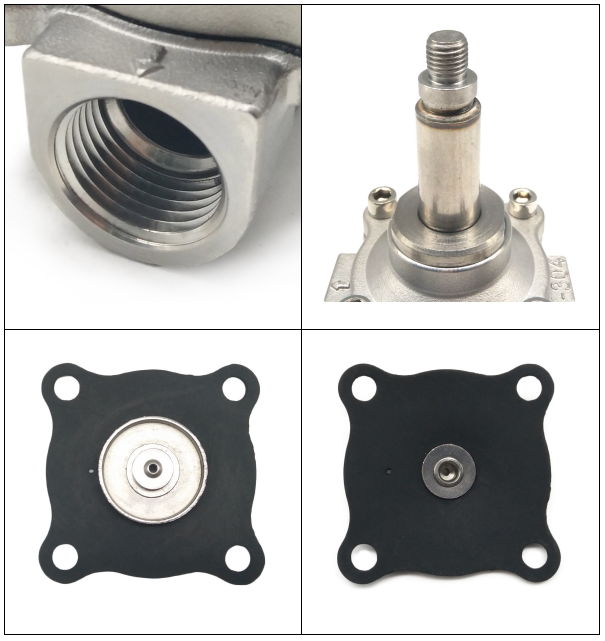

Details display of SUW-15 Nitrile Diaphragm Operated Electromagnetic Valve:

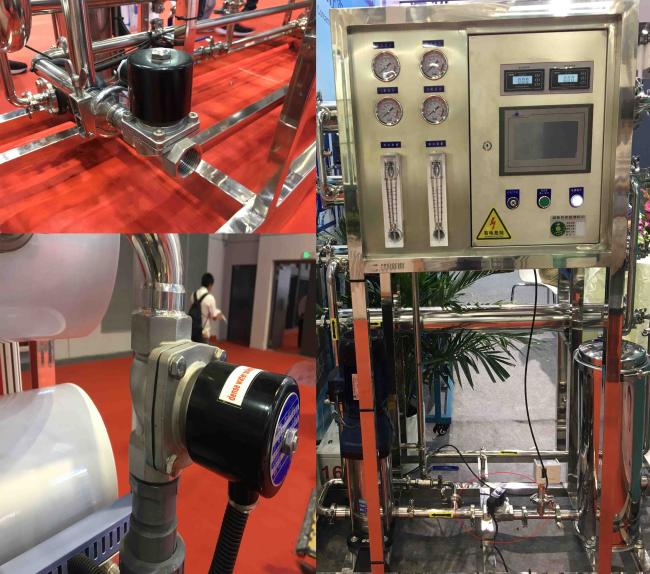

Application examples of 2S, SUS & SUW Seies Stainless Steel Solenoid Valve:
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
3. AC voltage tolerance:±10%；DC voltage tolerance:±1%
4. It should be installed horizontally；vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature；solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst
