Pneumatic Solenoid Valve Coil EVI 7/9 12VDC 24VDC 110VAC 220VAC

Price Negotiable

Price: Negotiation

MOQ: 1000

Delivery Time: Negotiation

Brand: BRANDO

Product Description

Pneumatic Solenoid Valve Coil EVI 7/9 12VDC 24VDC 110VAC 220VAC

This solenoid coil is popularly used in pneumatic solenoid valves. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Power: 4VA, 5.5VA, 6VA, 8.5VA, 3W, 4.8W, 6W, 8W. A pneumatic solenoid valve is used to direct or stop the flow of compressed air in a pneumatic system. Sometimes called a pneumatic directional control solenoid valve, they are used in automation and control applications to actuate tools, cylinders and larger indu

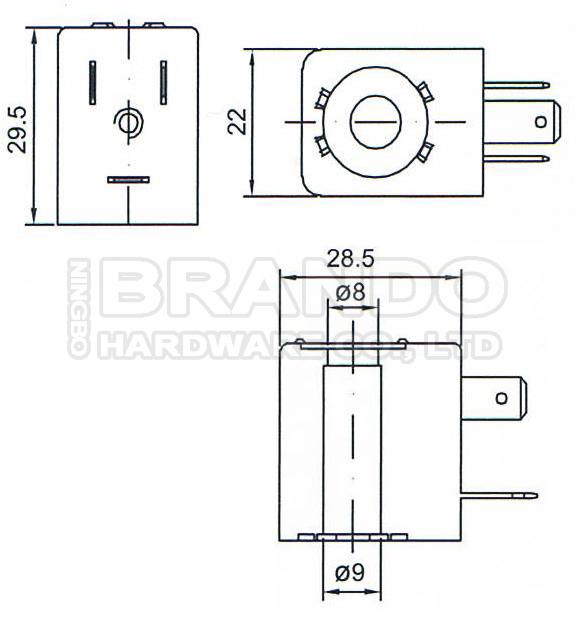

Dimension & Data of Solenoid Valve Coil, Armature:

BRANDO Model	BB09029516
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power	AC:4-8VA DC:3-8W
Other voltage and power can be customized
Insulation Class	F, H
Connector	DIN43650B

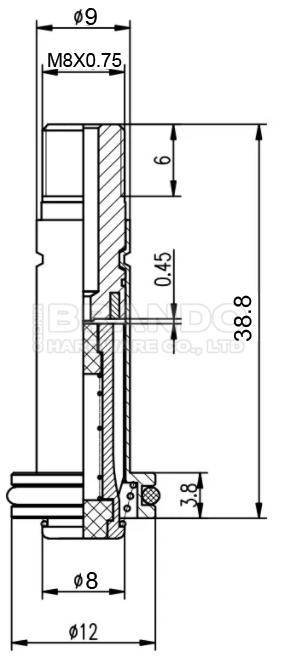

BRANDO Model	BAPC309029008
Function	3 Way Normally Closed
Plunger Tube Material	Brass
Seal Material	NBR, FKM, EPDM
Connection Type	Flange with O-ring Groove

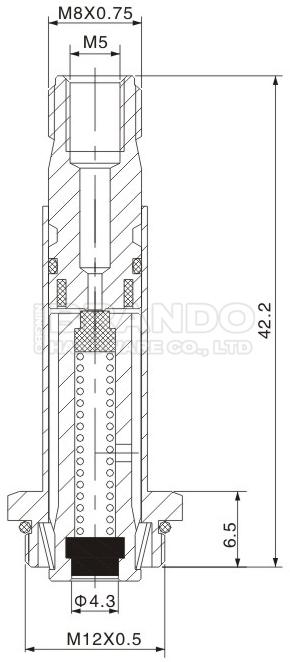

BRANDO Model	BAPC309029005
Function	3 Way Normally Closed
Plunger Tube Material	Brass
Seal Material	NBR, FKM, EPDM
Connection Type	M12x0.5 Thread

Video of Solenoid Valve Coil EVI 7/9:

BRANDO Solenoid Valve Coils Production Video:
