1-1/2" 2W400-40 NBR Diaphragm Brass Solenoid Valve AC110V DC12V
1-1/2" 2W400-40 NBR Diaphragm Brass Solenoid Valve AC110V DC12V
The solenoid valve introduced is UW-40 solenoid valve such like UNi-D type, which is one of the largest brass solenoid valve, the orifice size is 40mm, so it's a high flow valve for Automotive & Tire, Oil & Gas, Food & Packing, Water & Wastewater. The valve structure design of this series valves is semi-direct operated with zero pressure differential. Brando solenoid valves has wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage.
Options:
1. Orifice option:from 2.5mm to 50mm;
2. Thread Option: G, NPT, BSP;
3. Standard Voltage Option: DC12V, DC24V, AC110V, AC220V, AC380V;
4. Valve Body Material Option: Brass and Stainless Steel;
5. Seals Option: NBR, EPDM, VITON, PTFE and so on.
YouTube video of 1 1/2 Inch UW-40 Uni-D Type 2/2 Way Brass Solenoid Valve:

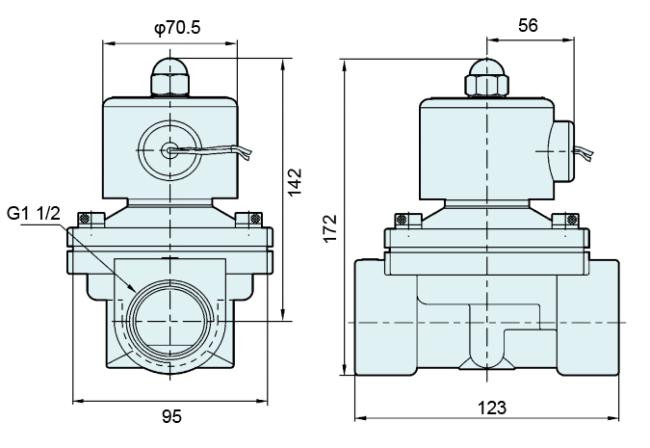

Overall dimension of 1-1/2'' 2W400-40 Normally Closed Electric Solenoid Valve:

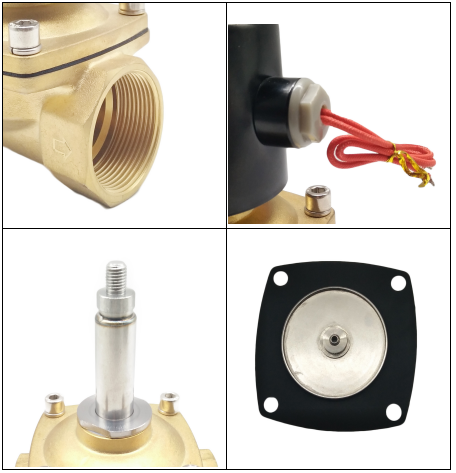

Spare part details of 2 Way Direct Lifting NBR Diaphragm Solenoid Valve:
Specifications of 2W, UD & UW Series 2-Way Normally Close Solenoid Valve:
| Brando number | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Reference number | UD-6 | UD-8 | UD-10 | UW-10 | UW-15 | UW-20 | UW-25 | UW-35 | UW-40 | UW-50 |
| Working medium | Air, Inert Gas, Liquid, Vacuum | |||||||||
| Valve type | 2/2 way, normally closed (NC) | |||||||||
| Main materials |
Body: Brass Seals: NBR (Buna); Option: Viton (FKM) Armature Assembly: Stainless Steel |
|||||||||
| Operation | Direct Acting, Uni-Directional, Zero Differential | |||||||||
| Pipe size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Working pressure | 0 to 101 PSI / 0-7 Bar (for Air, Water); 0 to 72 PSI / 0-5 Bar (for Oil) | |||||||||
| Working temperature | Media: -5 to 80°C (NBR Seals), -5 to 120°C (VITON Seals); Ambient: -5 to 45°C | |||||||||
| Fluid viscosity | Below 20cst | |||||||||
Brass Body Solenoid Valve Production Process Video Display In YouTube:
Further introduction of UW-40 brass solenoid valve:
It's two way two position semi direct acting diaphragm electric solenoid valve uses NBR or VITON diaphragm material that is compatible with many liquid such as water up to 150°C. The valve is normally closed, closed when de-energized and open when energized. It is capable of operating at zero differential pressure. This compact solenoid features with female G 1 1/2" thread or NPT 1 1/2" thread.
Attention
The impurities in the line must be cleaned first before installation. In order to prolong service life, Y filter should be installed on the front end of solenoid valve.
