Ultra High Temperature Stainless Steel Solenoid Valve 3/8'' 24V 110V 220V
Ultra High Temperature Stainless Steel Solenoid Valve 3/8'' 24V 110V 220V
This is an ultra high temperature normally closed (power to open) piston type solenoid valve with a 304 Stainless Steel body and PTFE seat. Mainly used for high temperature applications as it will do up to 225°C saturated steam and up to 225°C in other media such as hot oil. Will handle fluids up to 50 centistoke viscosity. Typical Applications include steam, laundry equipment, hot oil, steam curing beds, boilers and general industry.
Technical Data:
|
Port Size
|
Orifice Size
|
CV
|
Working Pressure
(bar)
|
Working Temperature
(℃)
|
Voltage
|
||
|
Min
|
Max
|
5 to 225
|
12VDC
24VDC
24VAC
110VAC
220VAC
|
||||
|
Oil
|
Steam
|
||||||
|
3/8''
|
15mm
|
4.5
|
0.5
|
25
|
|||
|
1/2''
|
15mm
|
4.5
|
|||||
|
3/4''
|
20mm
|
8
|
|||||
|
1''
|
25mm
|
12
|
|||||
|
1 1/4''
|
35mm
|
22
|
|||||
|
1 1/2''
|
35mm
|
22
|
|||||
|
2''
|
50mm
|
45
|
|||||

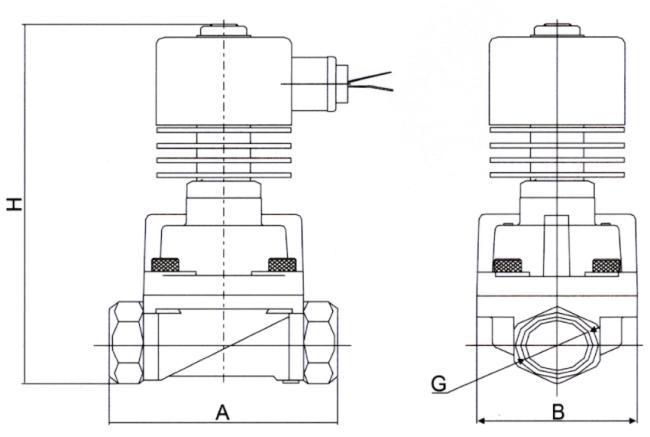

Main Dimension:
|
G
|
A
|
B
|
H
|
|
3/8''
|
75
|
52
|
159
|
|
1/2''
|
75
|
52
|
159
|
|
3/4''
|
85
|
60
|
171
|
|
1''
|
100
|
70
|
178
|
|
1 1/4''
|
120
|
90
|
198
|
|
1 1/2''
|
120
|
90
|
198
|
|
2''
|
150
|
110
|
220
|
Production Video of Solenoid Valve:
