5404 B 12.0 EB MS 1/2'' 40 bar Solenoid Valve For Air Compressor 24V 110V 230V

Product Features:

1. Working Medium: Water, Air, Oil, Steam, etc
2. Working Pressure Range: 1 to 40 bar
3. Medium Temperature Range: -10 to +120ºC
4. Port Size: 1/2''
5. Orifice Size: 12mm
6. Body Material: Brass
7. Seal Material: PTFE seat seal + FKM
8. Function: 2 Way Normally Open
9. Operation: Servo-Assisted Piston
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
11. Application: Air Compressor

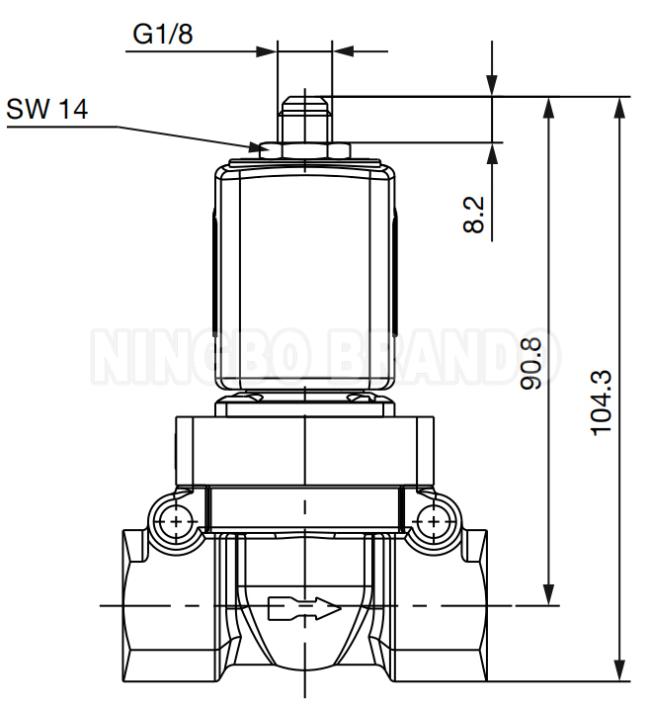

Technical Data:​

Production Show:

Production Video:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
